Up To 500 Watt Amplifiers

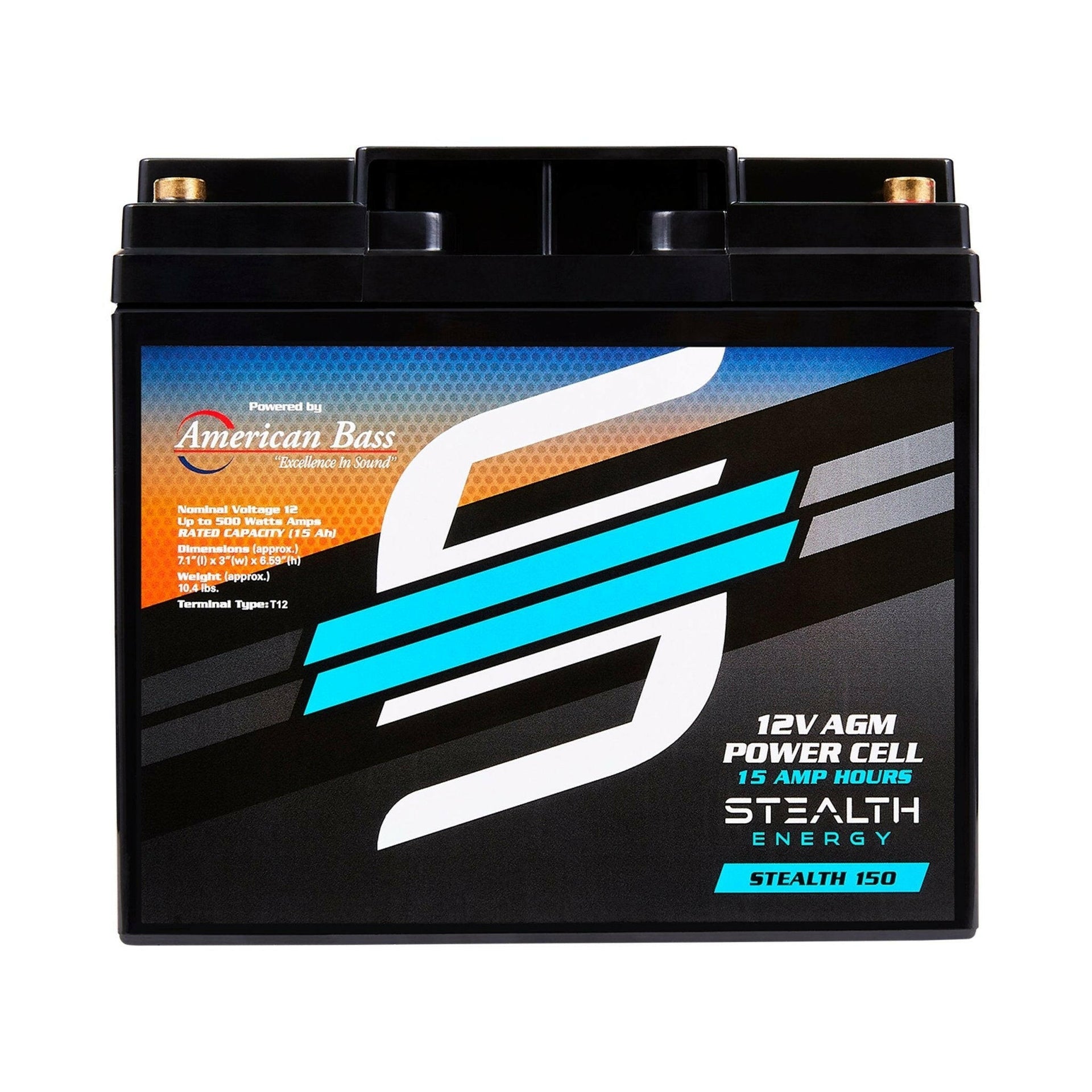

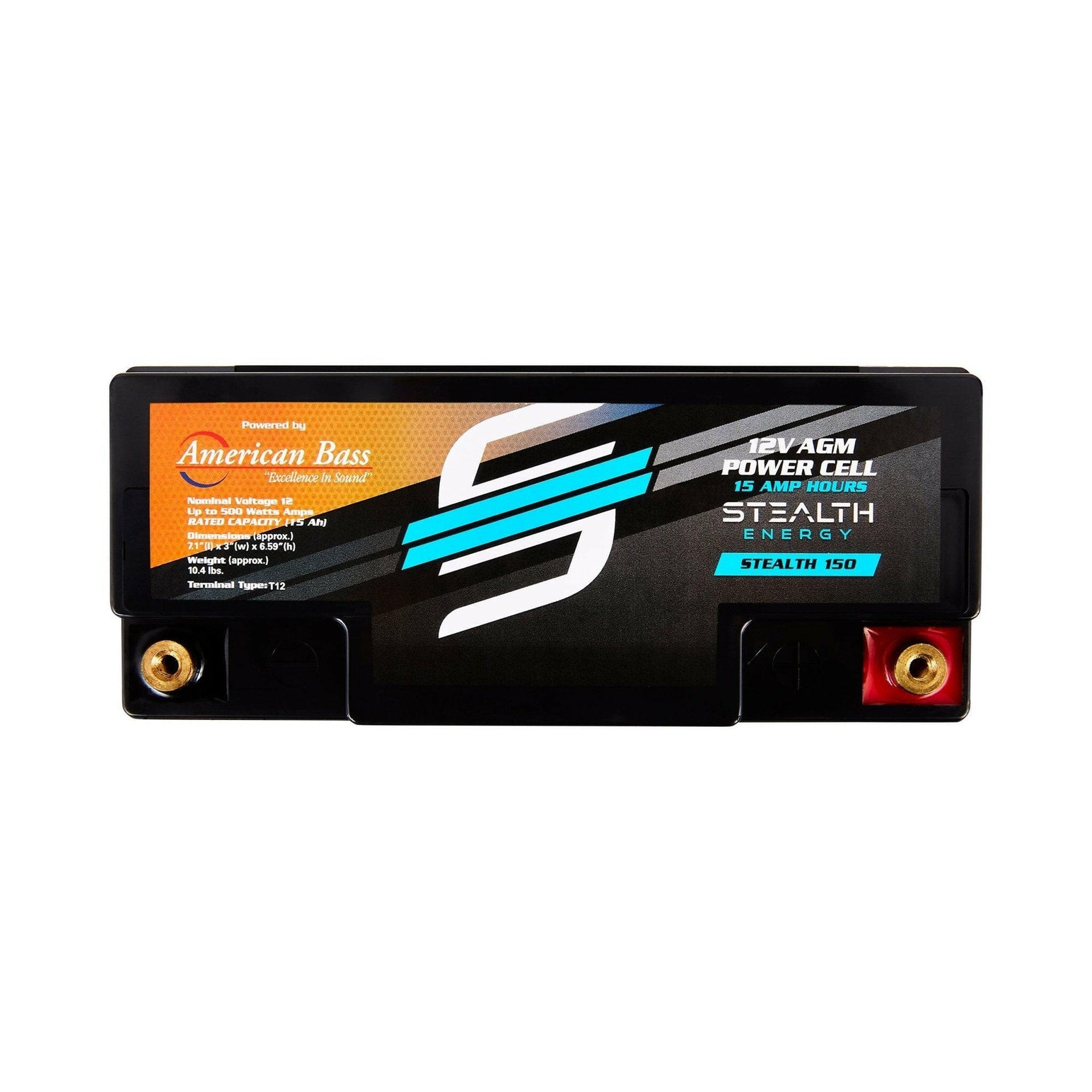

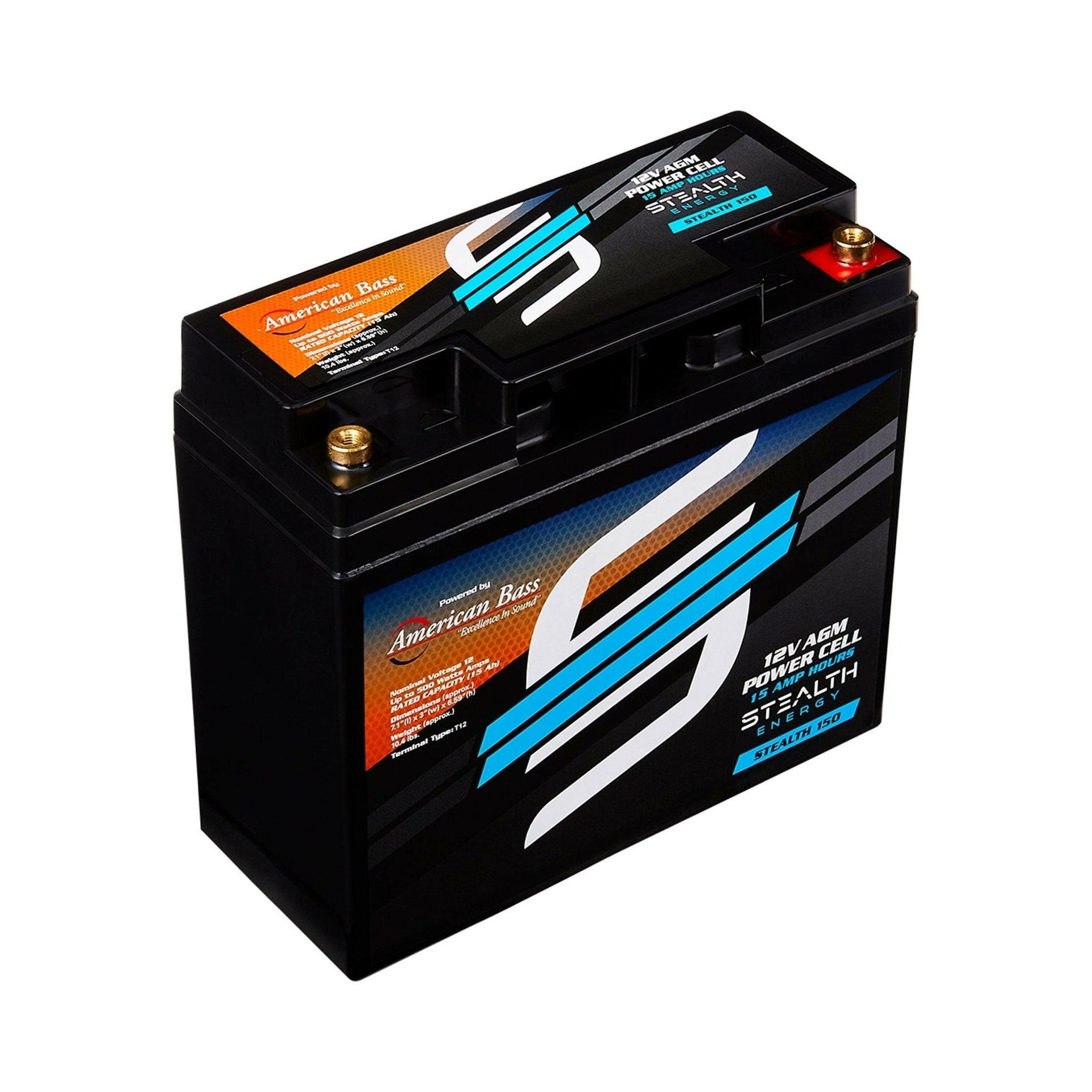

12V AGM Battery, 15 AH
| NOMINAL VOLTAGE |
12V |
| NOMINAL CAPACITY(20HR) |
15.0AH
|
| APPROX WEIGHT |
Approx 4.9 kg (10.8lbs) |
| TERMINAL |
T12 |
| CONTAINER MATERIAL |
ABS |
| MAX. DISCHARGE CURRENT |
225A (5s) |
| INTERNAL RESISTANCE APPROX |
18mΩ |
| NOMINAL OPERATING TEMP. RANGE |
25 3 C (77 5 F ) |
| DIMENSION |
-
Length: 181.5 2mm (7.14 inches)
-
Width: 76.5 2mm (3.01 inches)
-
Container Height: 167.5 2mm (6.59 inches)
-
Total Height (with Terminal): 167.5 2mm (6.59 inches)
|
| RATED CAPACITY |
-
15.0 AH/0.75A: (20hr ,1.80V/cell,25 C/77 F)
-
14.0 AH/1.40A: (10hr ,1.80V/cell,25 C/77 F)
-
12.8 AH/2.55A: (5hr ,1.75V/cell,25 C/77 F)11.5 AH/3.83A: (3hr ,1.75V/cell,25 C/77 F)
-
9.42 AH/9.42A: (1hr ,1.60V/cell,25 C/77 F)
|
| CAPACITY AFFECTED BY TEMPERATURE |
- 40 C (104 F): 103%
- 25 C (77 F): 100%
- 0 C (32 F): 86%
|
| OPERATING TEMP.RANGE |
-
Discharge: -15 50 C (5 122 F)
-
Charge: 0 40 C (32 104 F)
-
Storage: -15 40 C (5 104 F)
|
|
CYCLE USE
|
- Initial Charging Current less than 4.5A.Voltage
- 14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C
|
|
STANDBY USE
|
- No limit on Initial Charging Current Voltage
- 13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C
|
|
SELF DISCHARGE
|
- Batteries may be stored for up to 6 months
- at 25 C(77 F) and then a freshening charge is required.
- For higher temperatures the time interval will be shorter.
|
