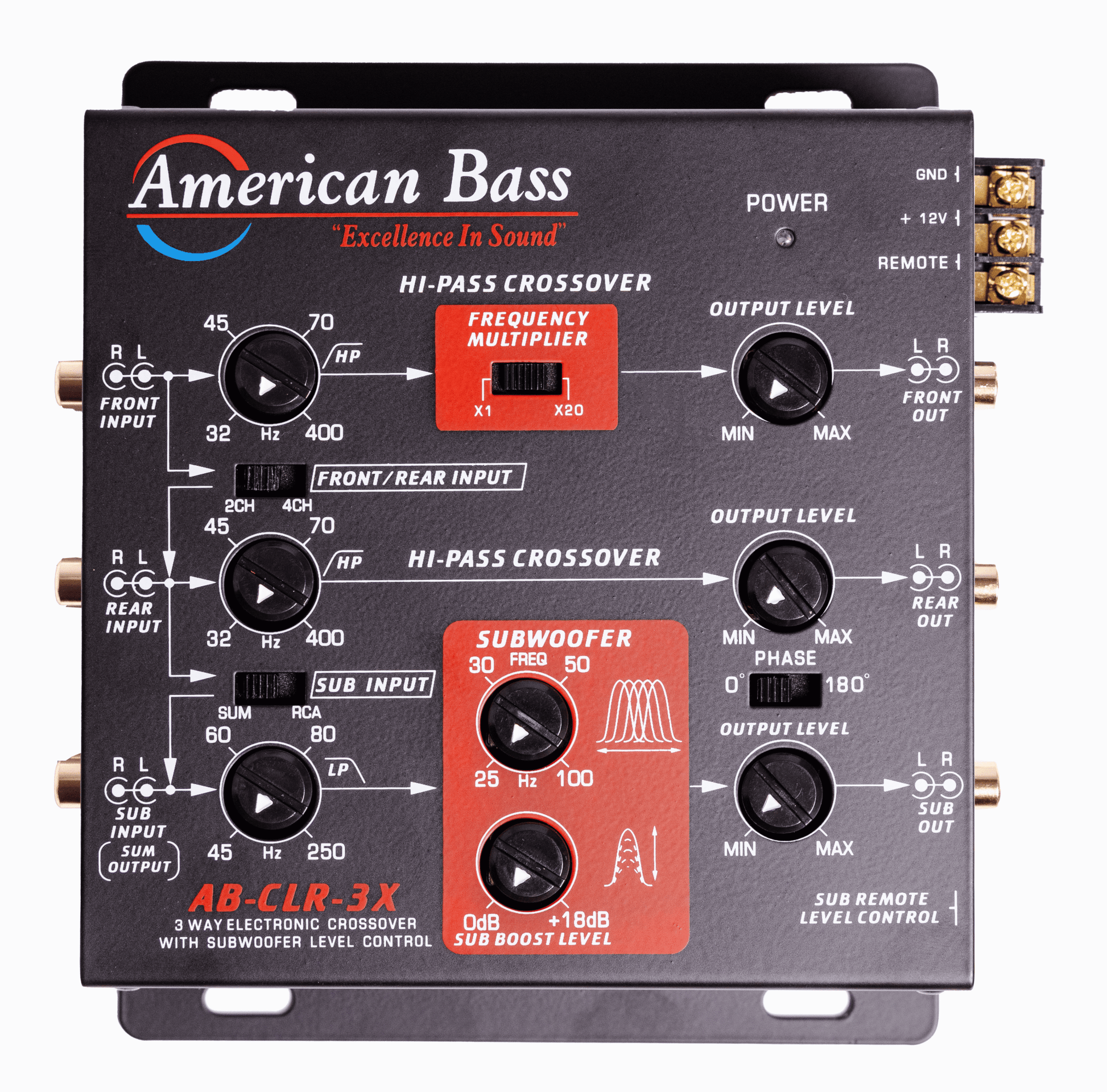

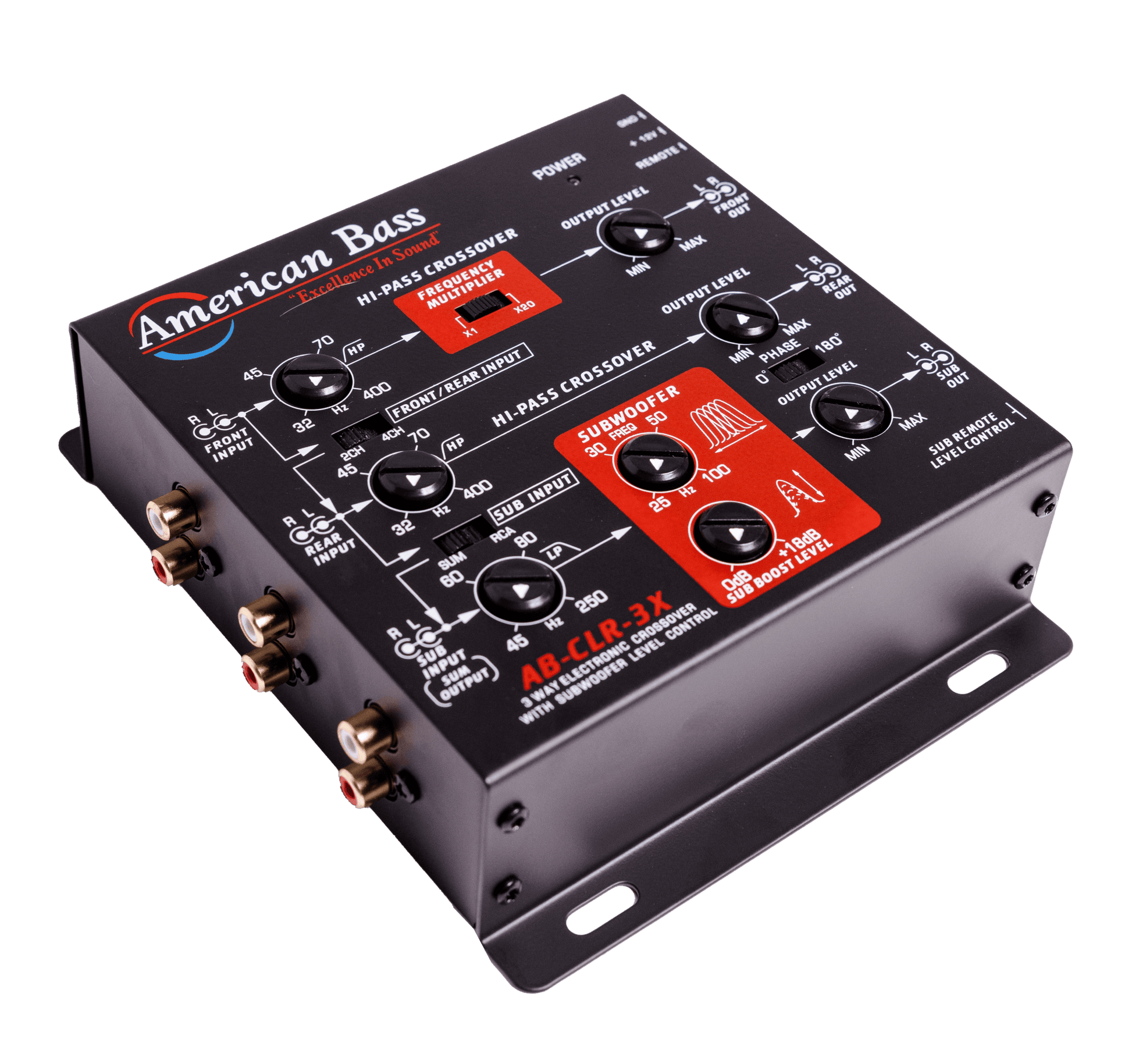

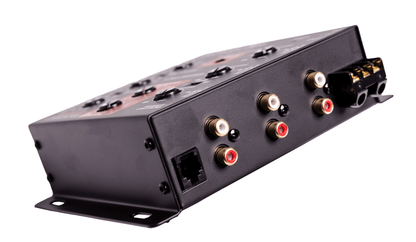

AB-CLR-3X 3-Way Active Electronic Crossover with Subwoofer Level Control
AB-CLR-3X 3-Way Active Electronic Crossover with Subwoofer Level Control
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Share
The AB-CLR-3X is a high-performance 3-way active crossover engineered for serious car audio systems. It provides independent crossover adjustment for front, rear, and subwoofer channels, allowing precise control over frequency separation, phase alignment, and output levels. With its remote subwoofer level control and clean signal path, this unit is ideal for advanced multi-amp and competition-level sound systems.
| Power Source | 14.4 volts DC (negative ground) |
| Input Current | 0.5 A max |
| Distortion (THD) | 0.01% at 1V |
| Frequency Response | 10 Hz – 30 kHz (–3dB) |
| Signal-to-Noise Ratio | >100 dB |
| Channel Separation | 60 dB |
| Crossover Slope | 18 dB/octave, 3rd order Butterworth |
| Input Impedance | 20 kΩ |
| Output Impedance | 100 Ω |
| Output Gain | 1:2 (+6 dB) |
| Output Voltage Level | 5 V max |
|
Dimension |
152mm x 180mm x 43mm |
Support
- Specification Sheet (PDF)
