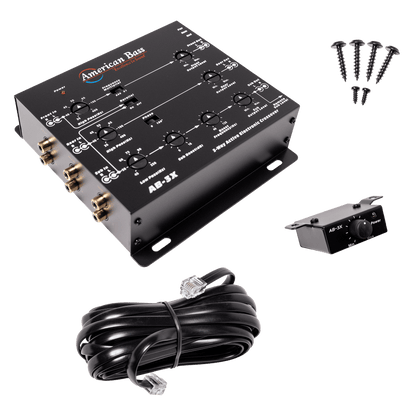

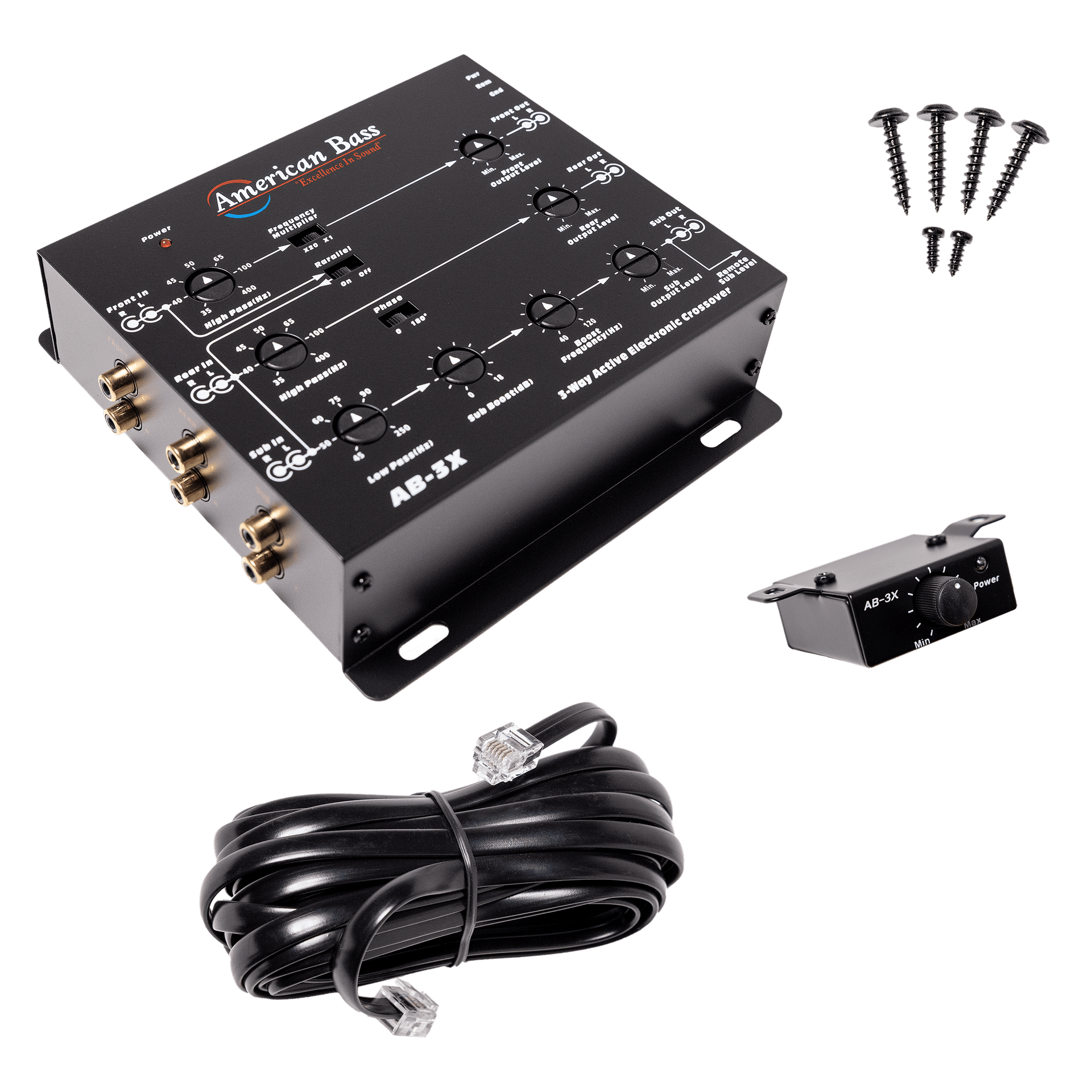

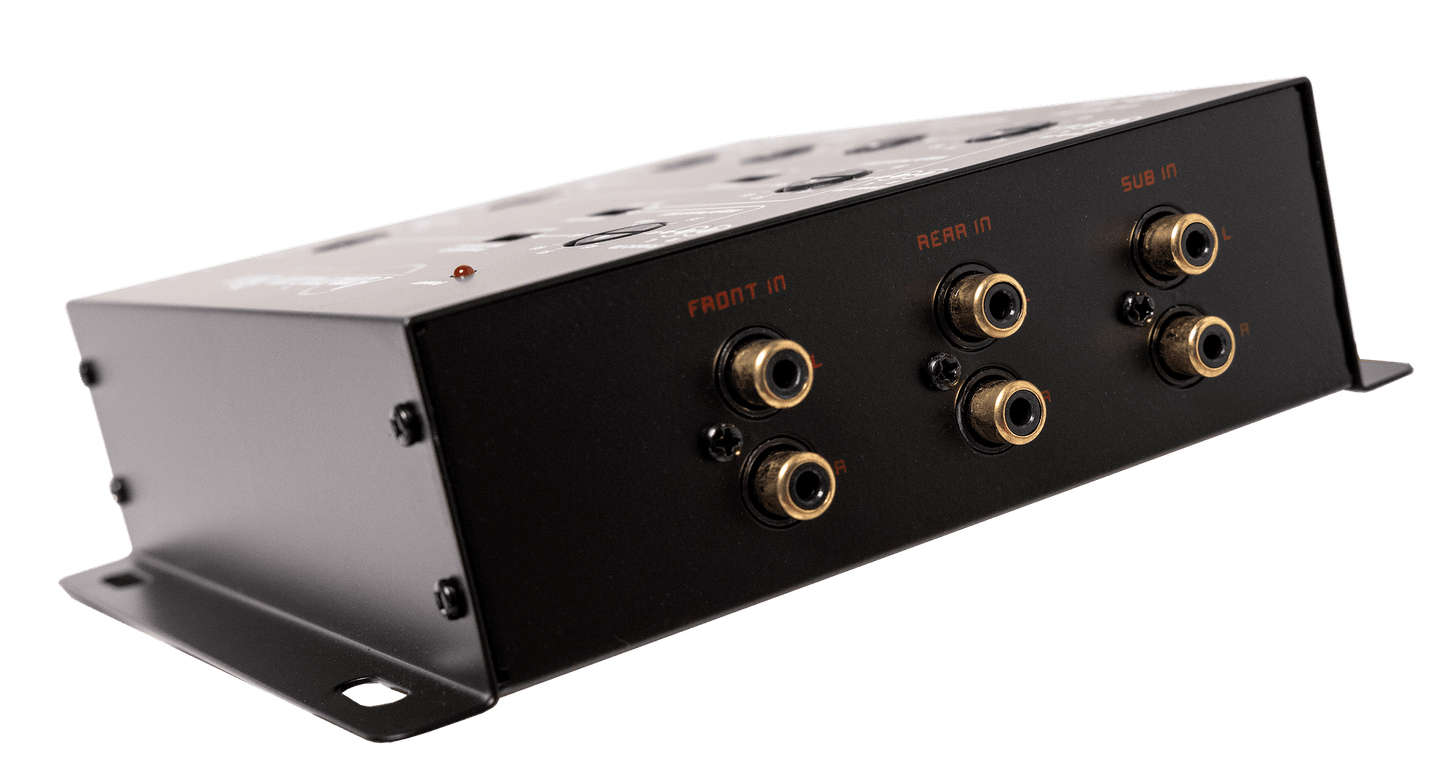

AB-3X Crossover
AB-3X Crossover
Regular price
$101.38 USD
Regular price
$126.72 USD
Sale price
$101.38 USD
Unit price
/
per
Share

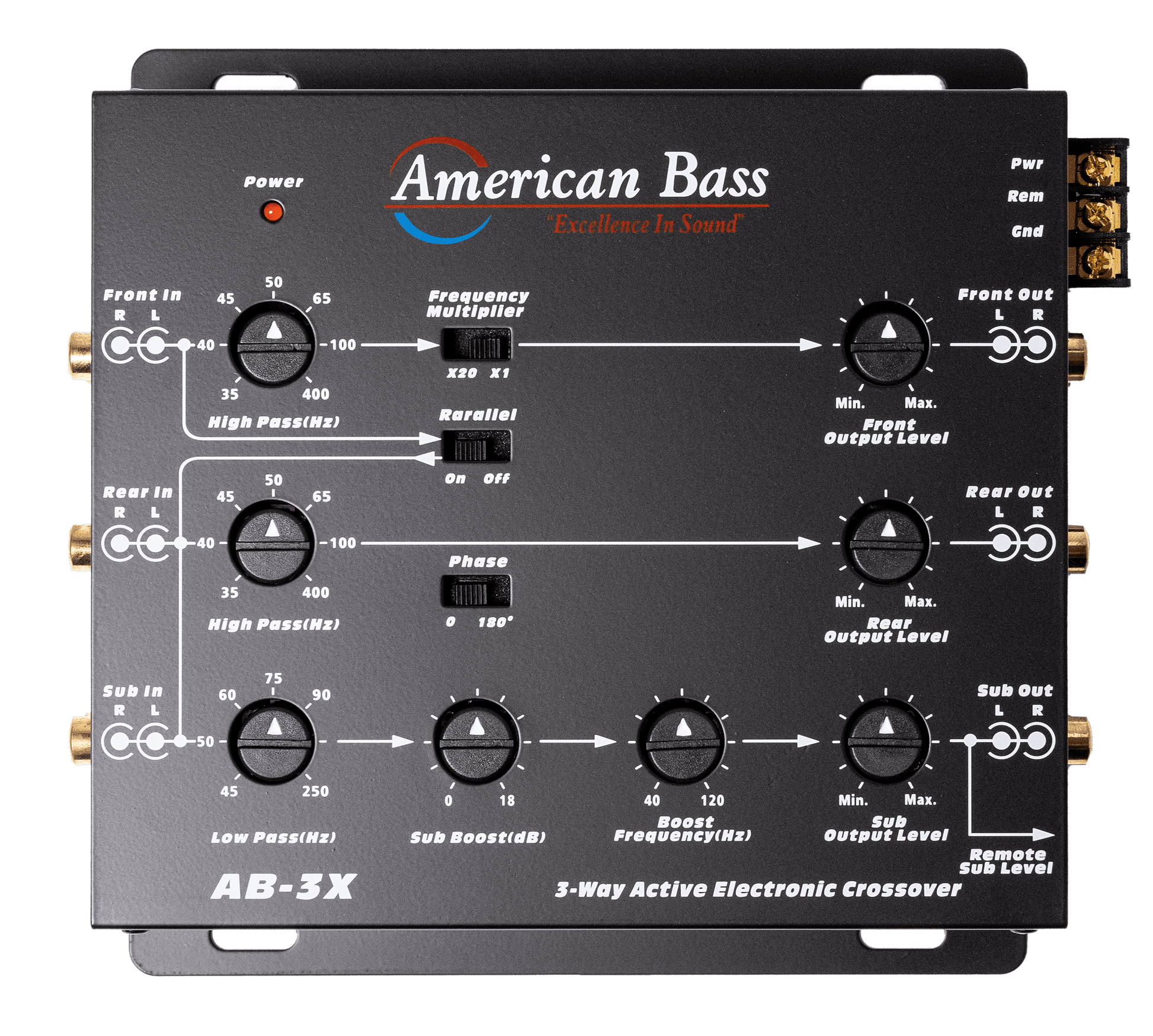

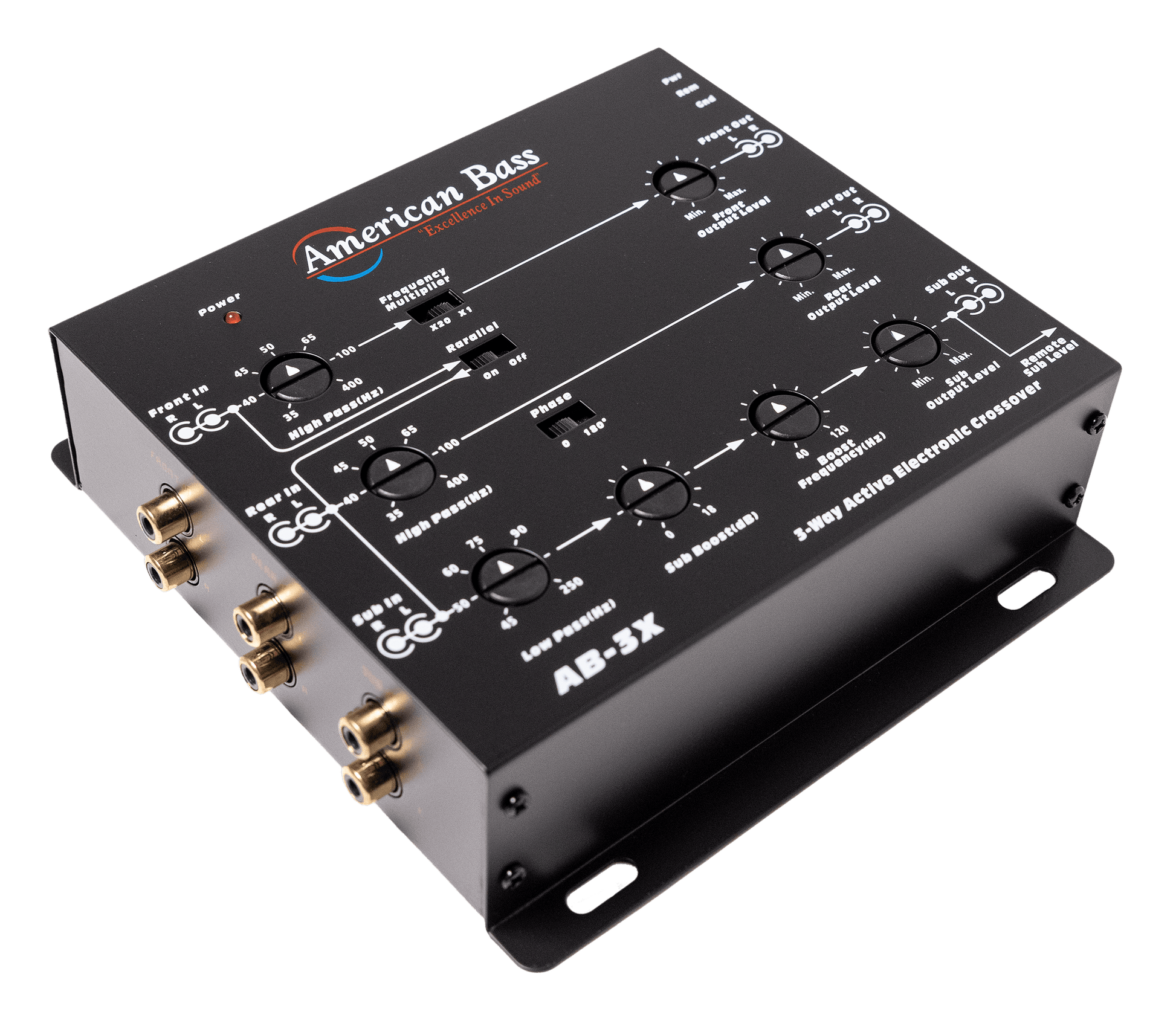

AB-3X Crossover High-Precision Audio Divider
SKU: AB-3X
Introducing the AB-3X Crossover from American Bass – the essential tool for delivering unmatched audio clarity and precision. Tailored for the discerning audiophile, this crossover effortlessly divides your music into distinct frequency bands, ensuring that each speaker in your system plays the frequencies for which it's best suited. By doing so, it creates a harmonious blend of highs, mids, and lows, resulting in a richer and more immersive listening experience. With its sleek design and cutting-edge technology, the ABX 3.1A Crossover stands as a testament to American Bass's commitment to superior sound quality and innovation.
| FRONT HIGH PASS (x1) | 35Hz-400Hz |
| (x20) | 700Hz-8KHz |
| REAR HIGH PASS | 35Hz-400Hz |
| SUBWOOFER LOW PASS/FREQUENCY | 45Hz-250Hz (-18dB/OCT) |
| OUTPUTS LEVEL | 8V PEAK |
| FREQUENCY RESPONSE | 10-50KHz(-3dB) |
| S/N RATIO | 110dB |
| THD | 0.01% |
| INPUT IMPEDANCE | 20K OHMS |
| OUTPUT IMPEDANCE | LESS THAN 150 OHMS |
| CHANNEL SEPARATION | MORE THAN 70dB |
| VARIABLE SUBSONIC FILTER | ON/OFF WITH -18dB/OCT. AT 40 Hz |
| LOW PASS/HIGHPASS | -18BD/OCT |
| POWER SOURCE | 11-15 VOLTS DC NEGATIVE GROUND |
| MAX OUTPUT VOLTAGE | - |
| PRE GRAPHIC FREQUENCY | - |
| EQUALIZATION RANGE | - |
