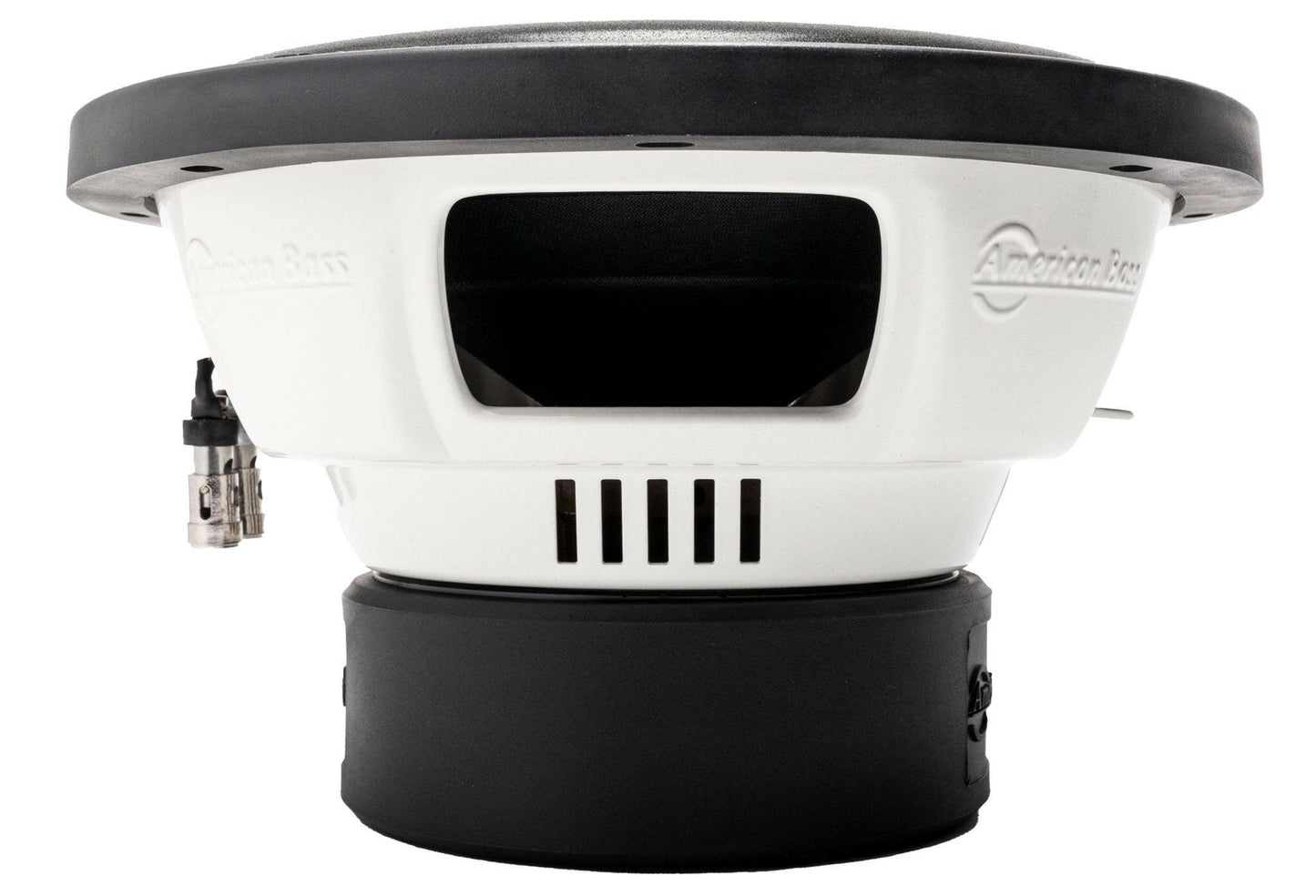

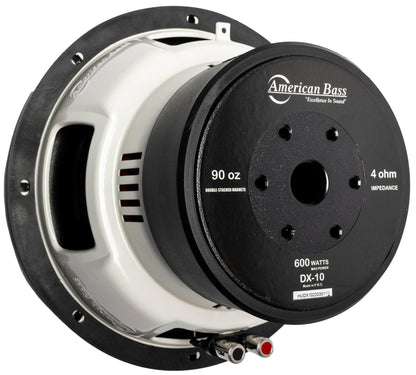

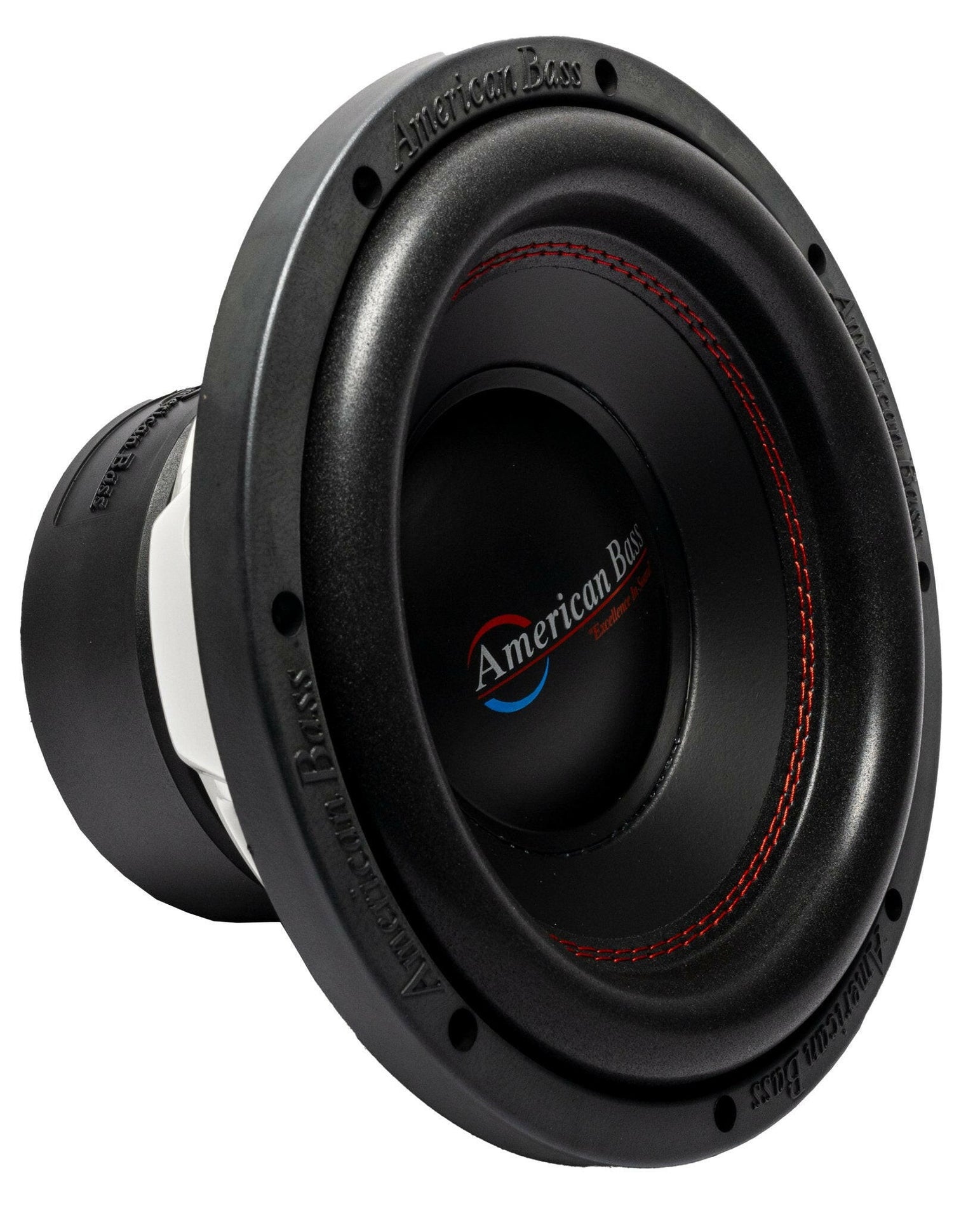

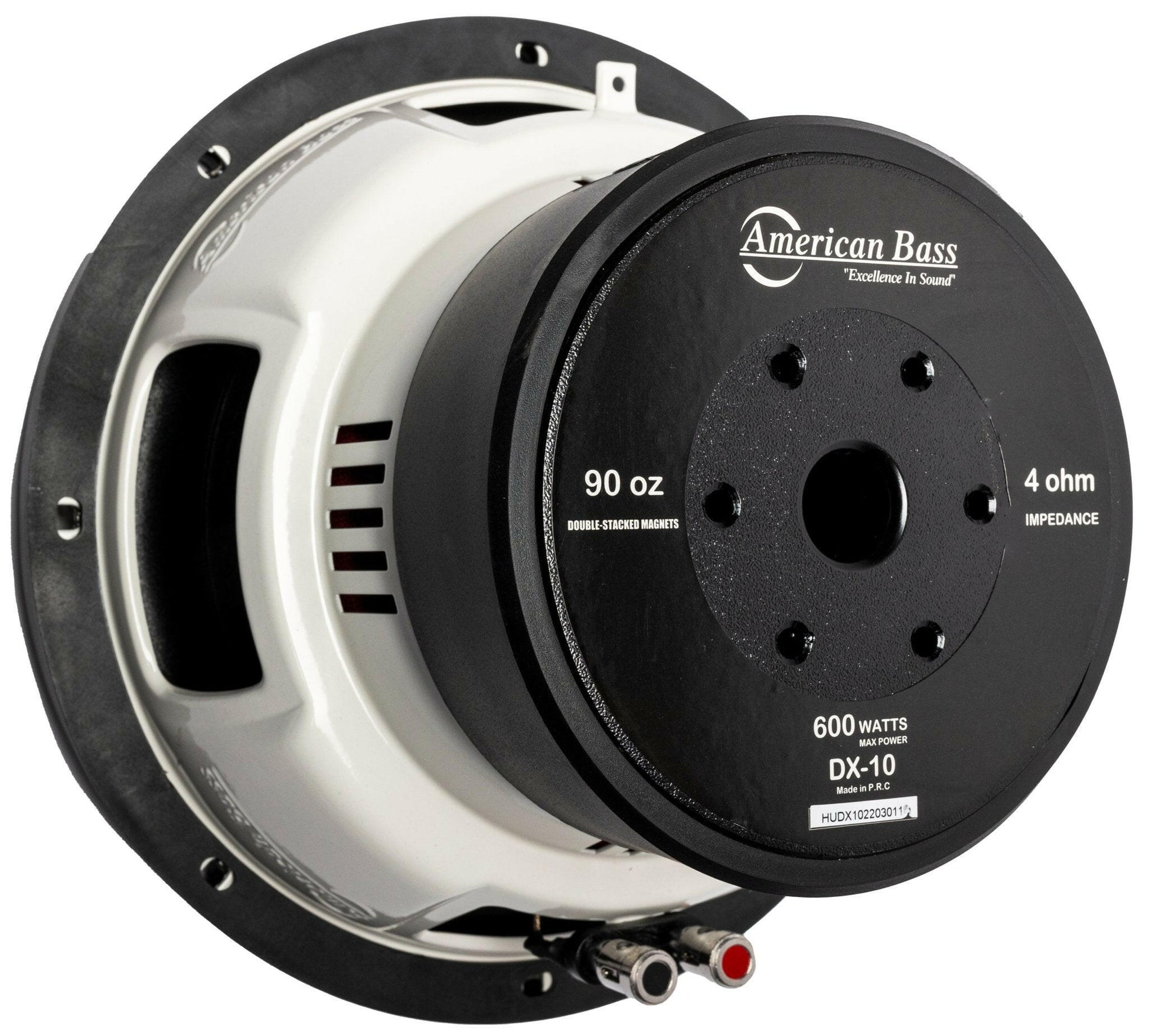

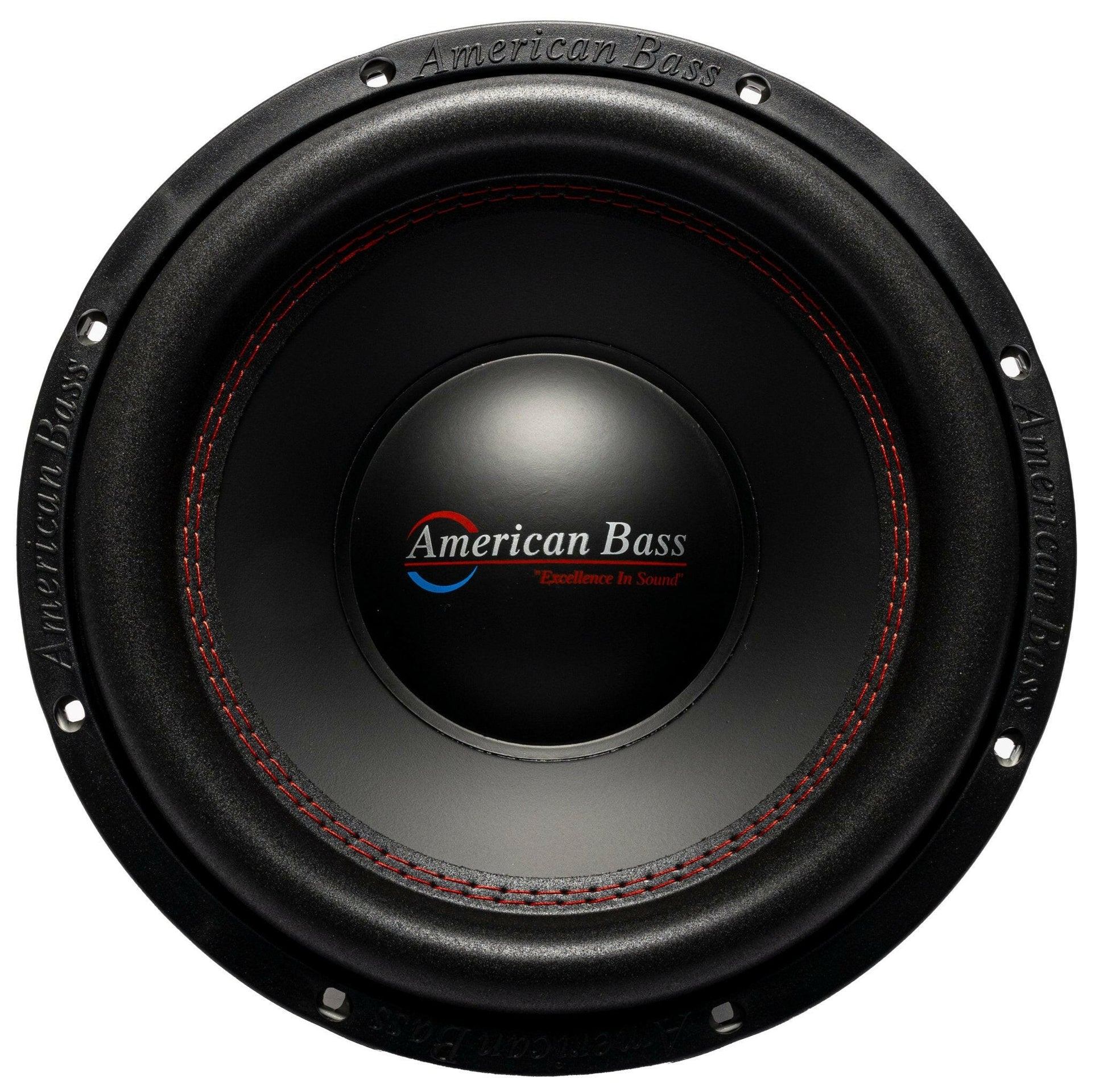

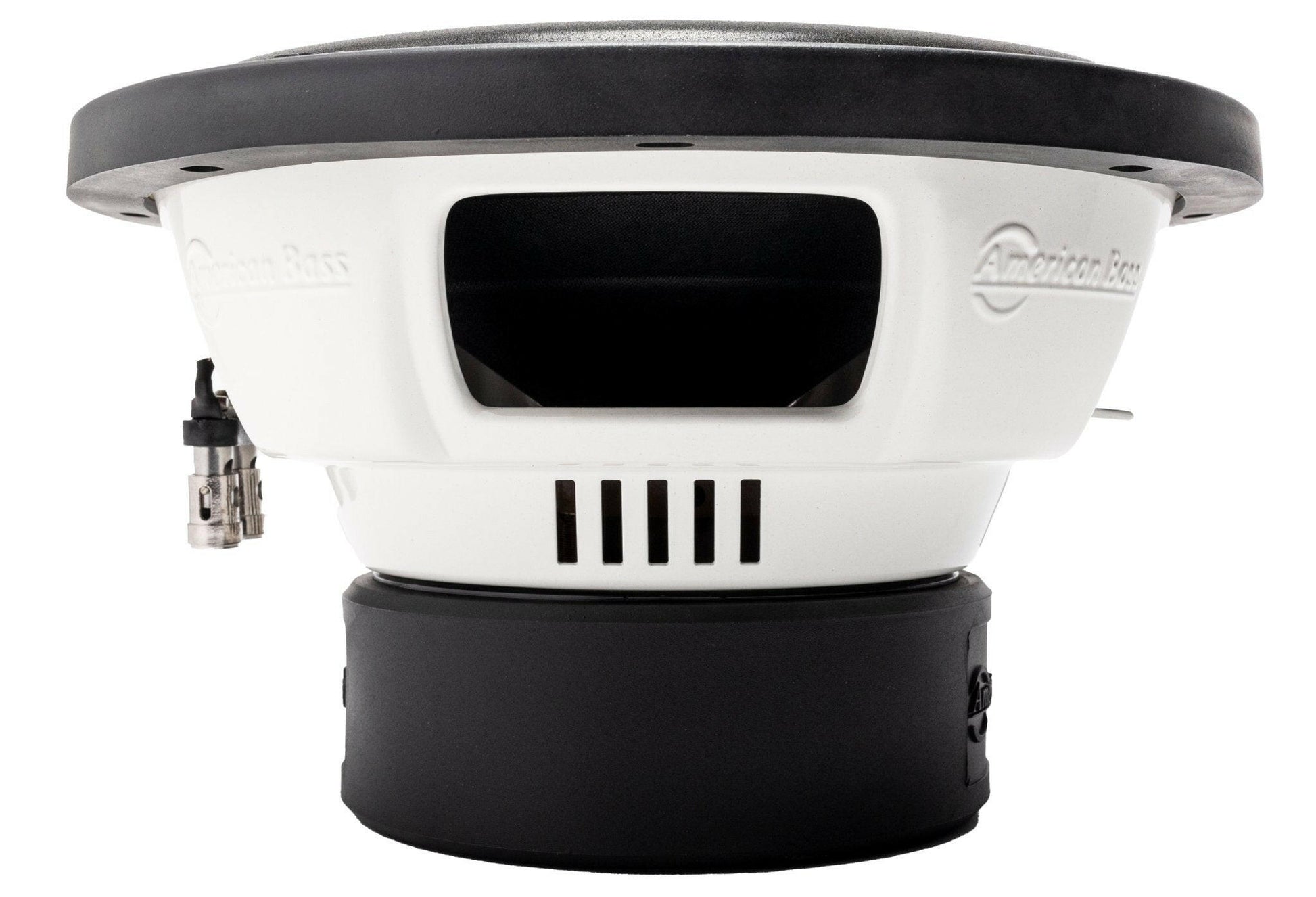

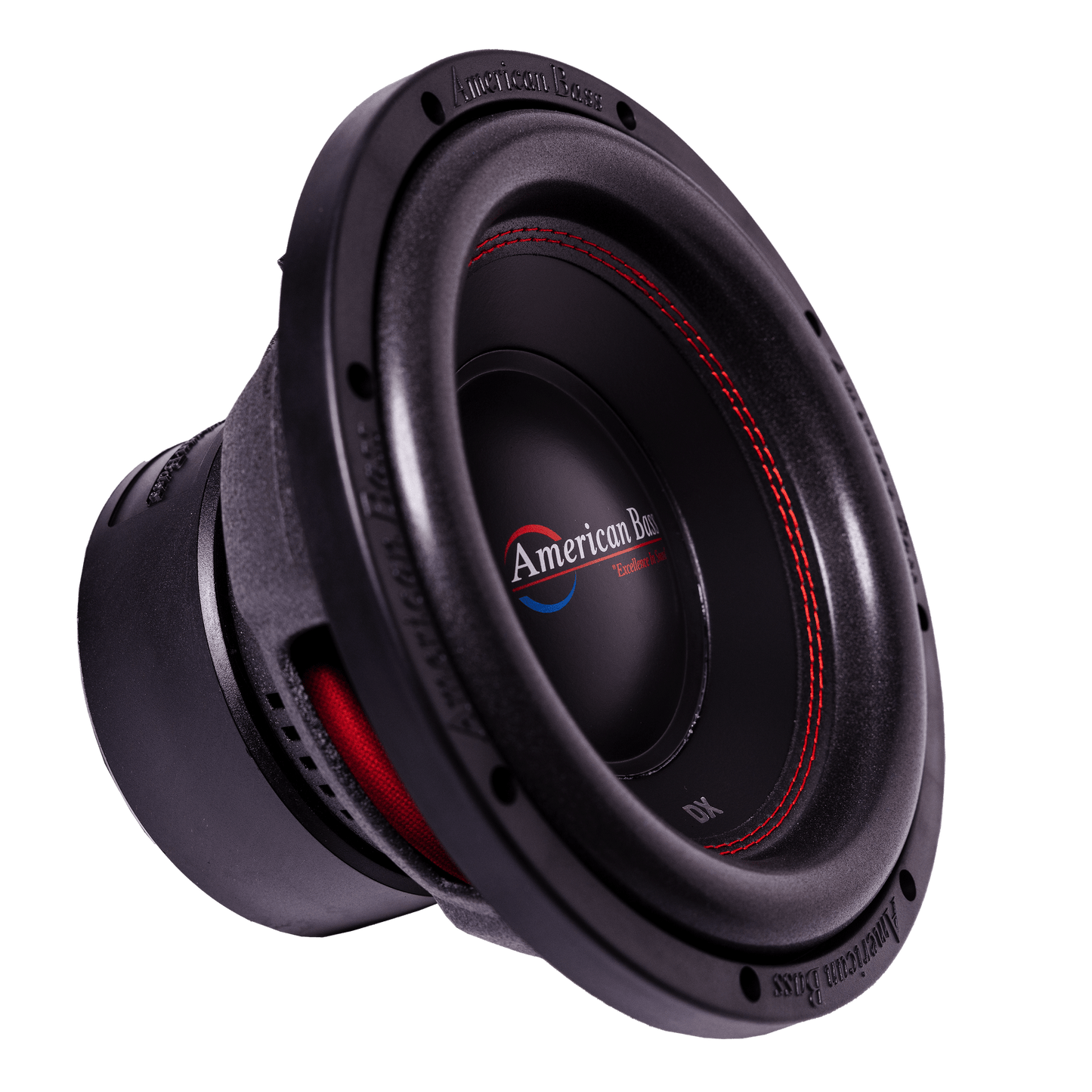

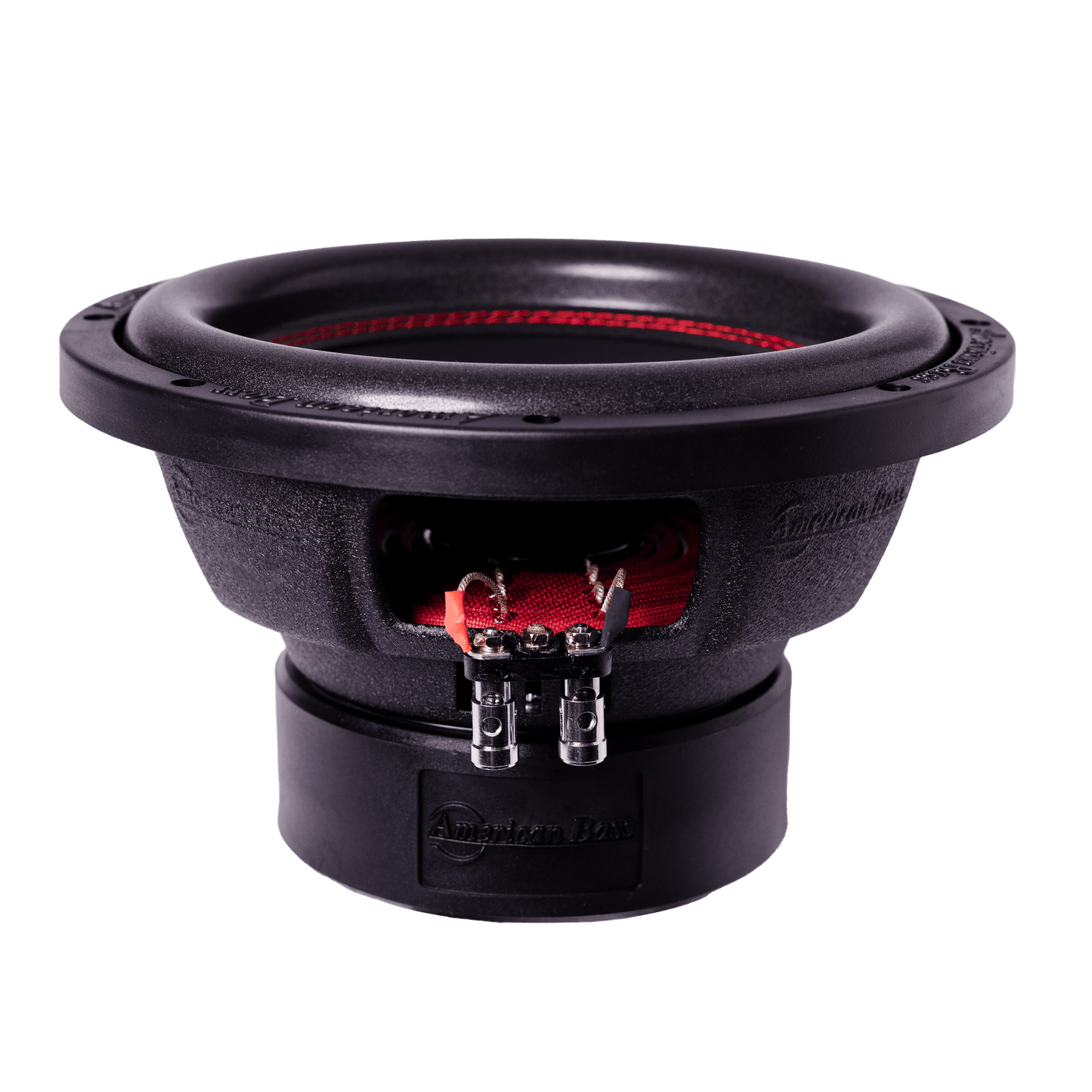

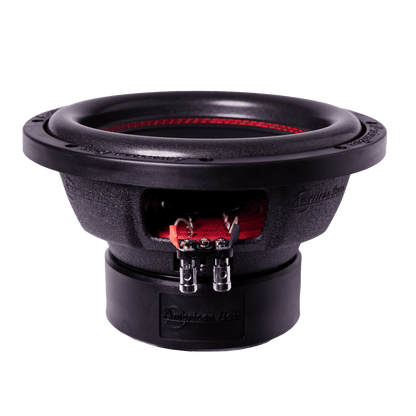

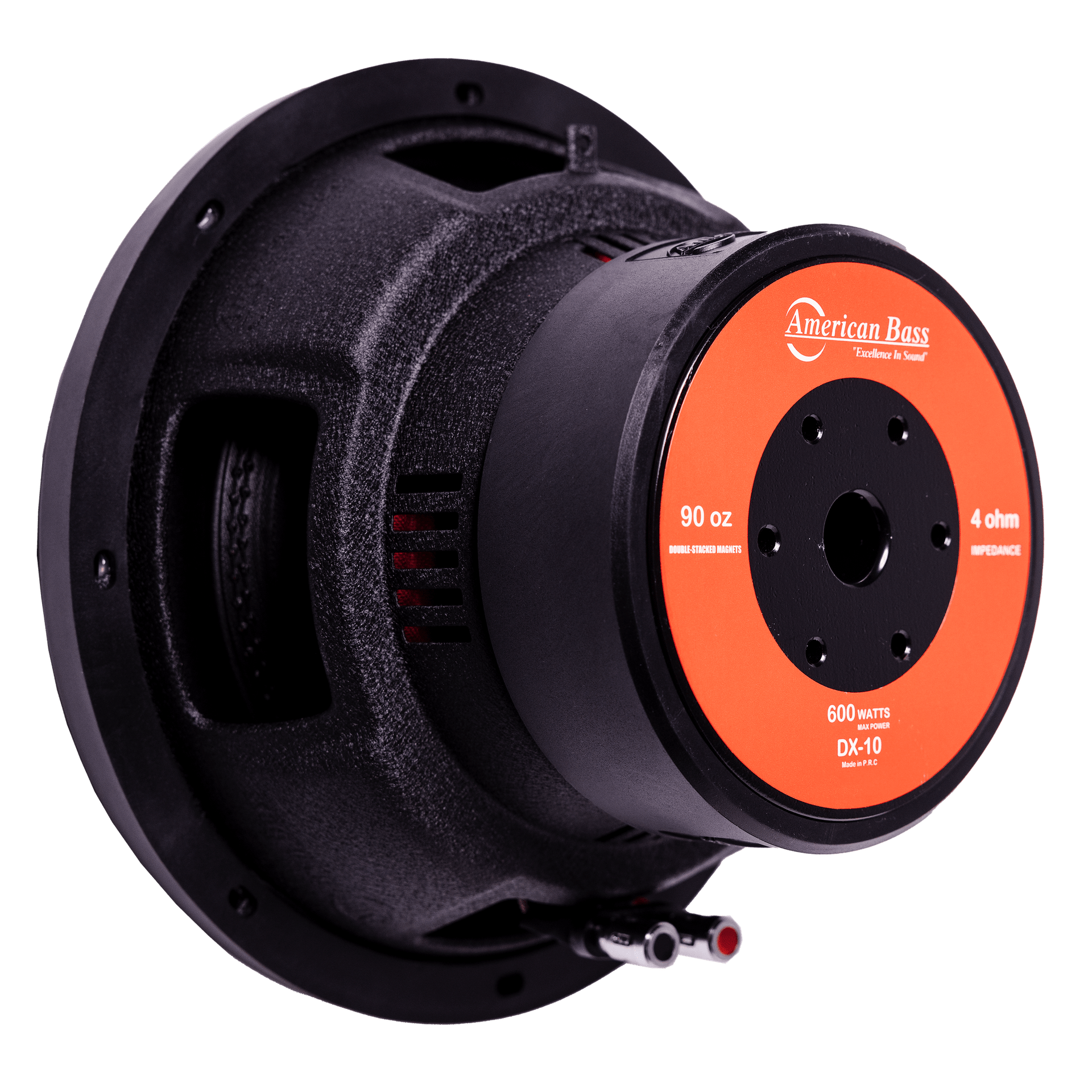

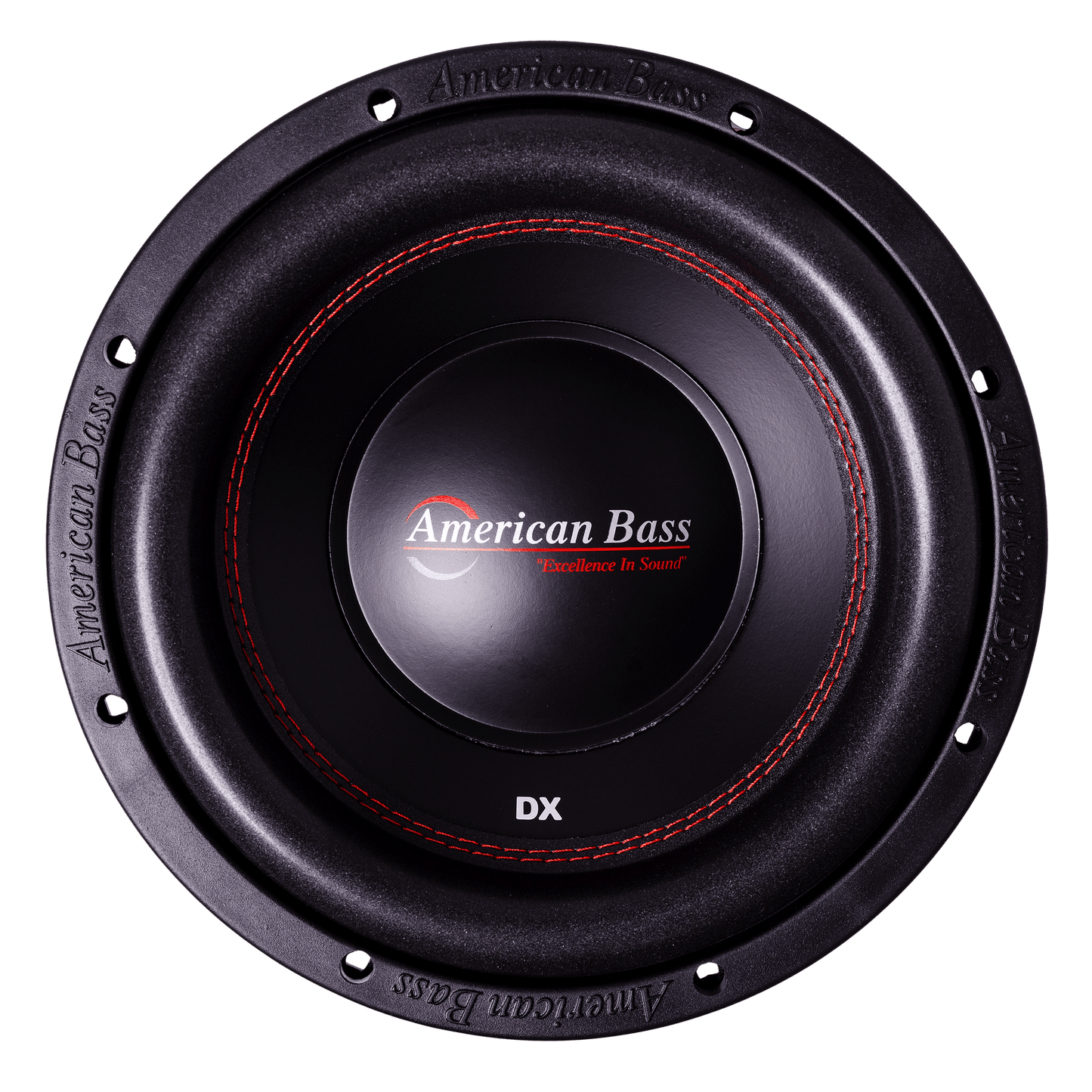

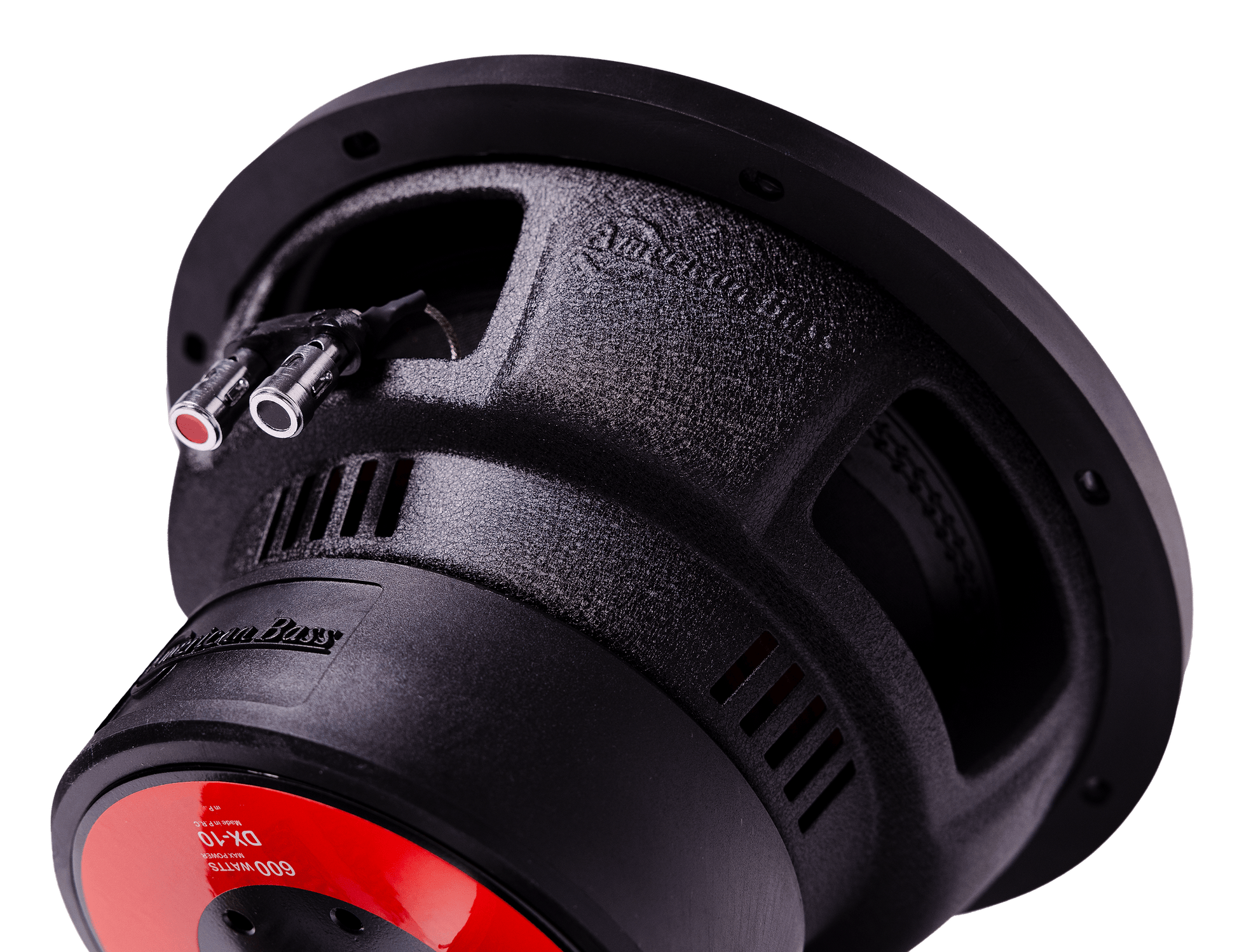

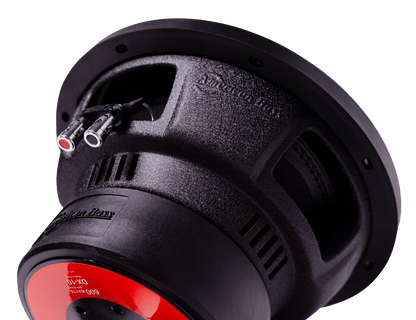

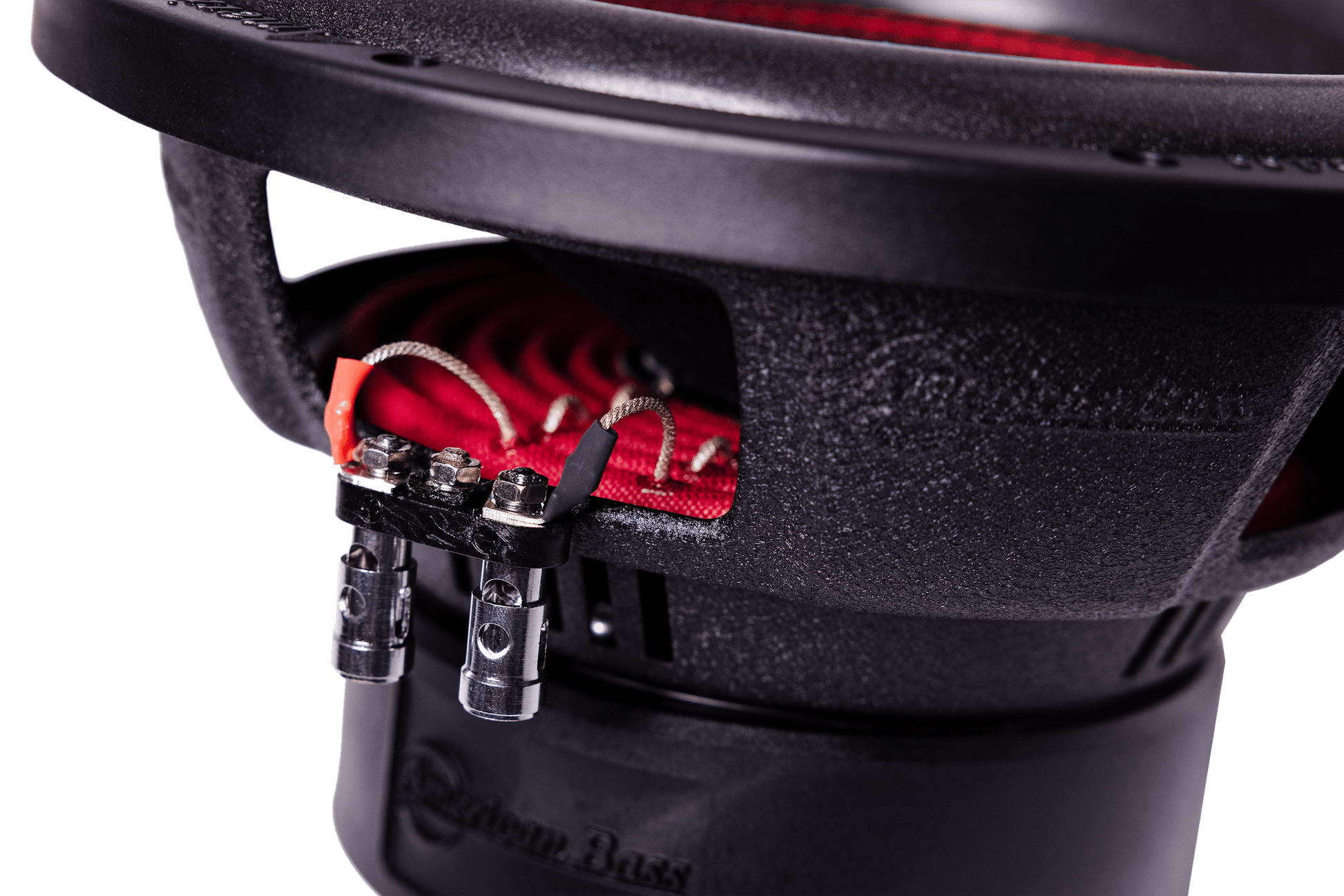

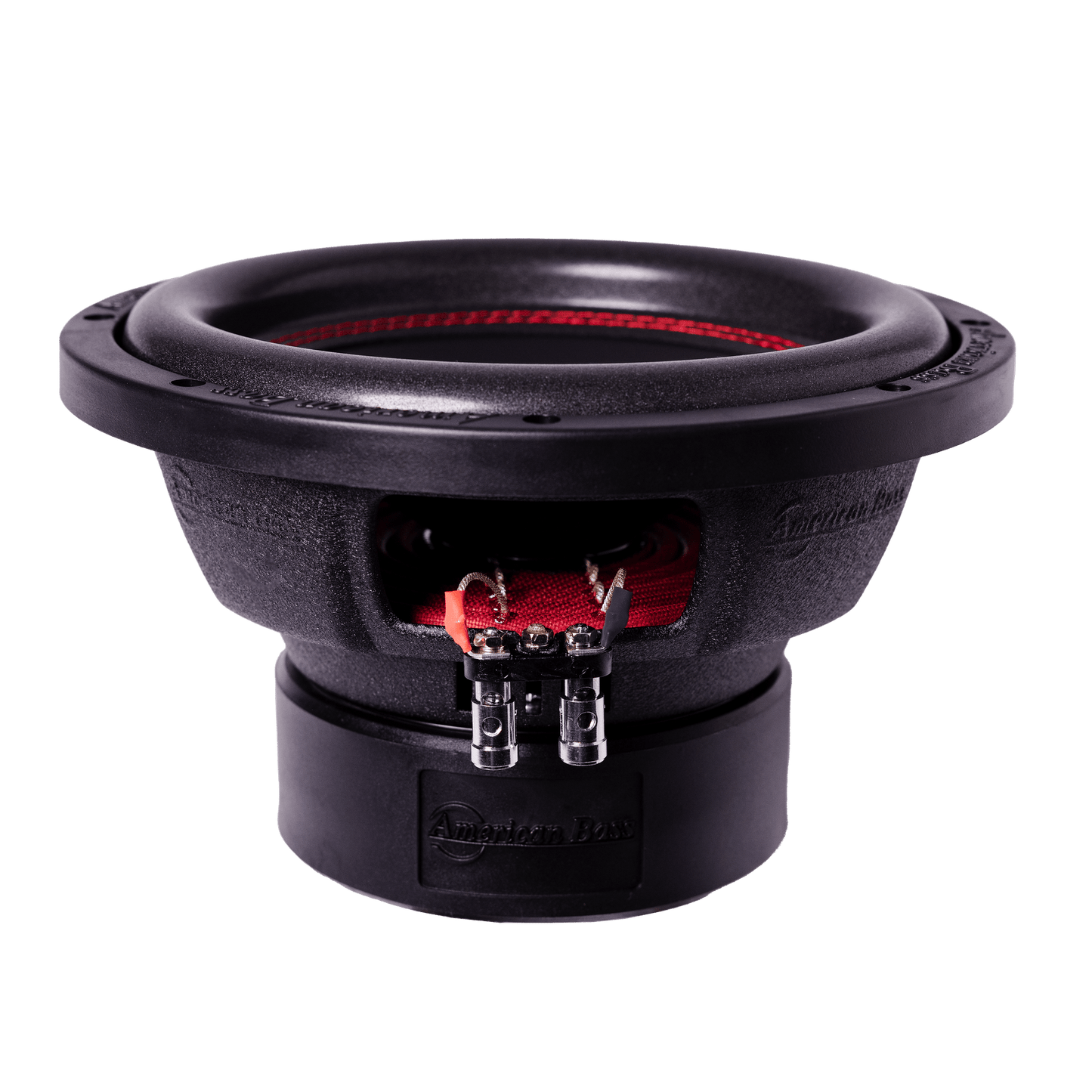

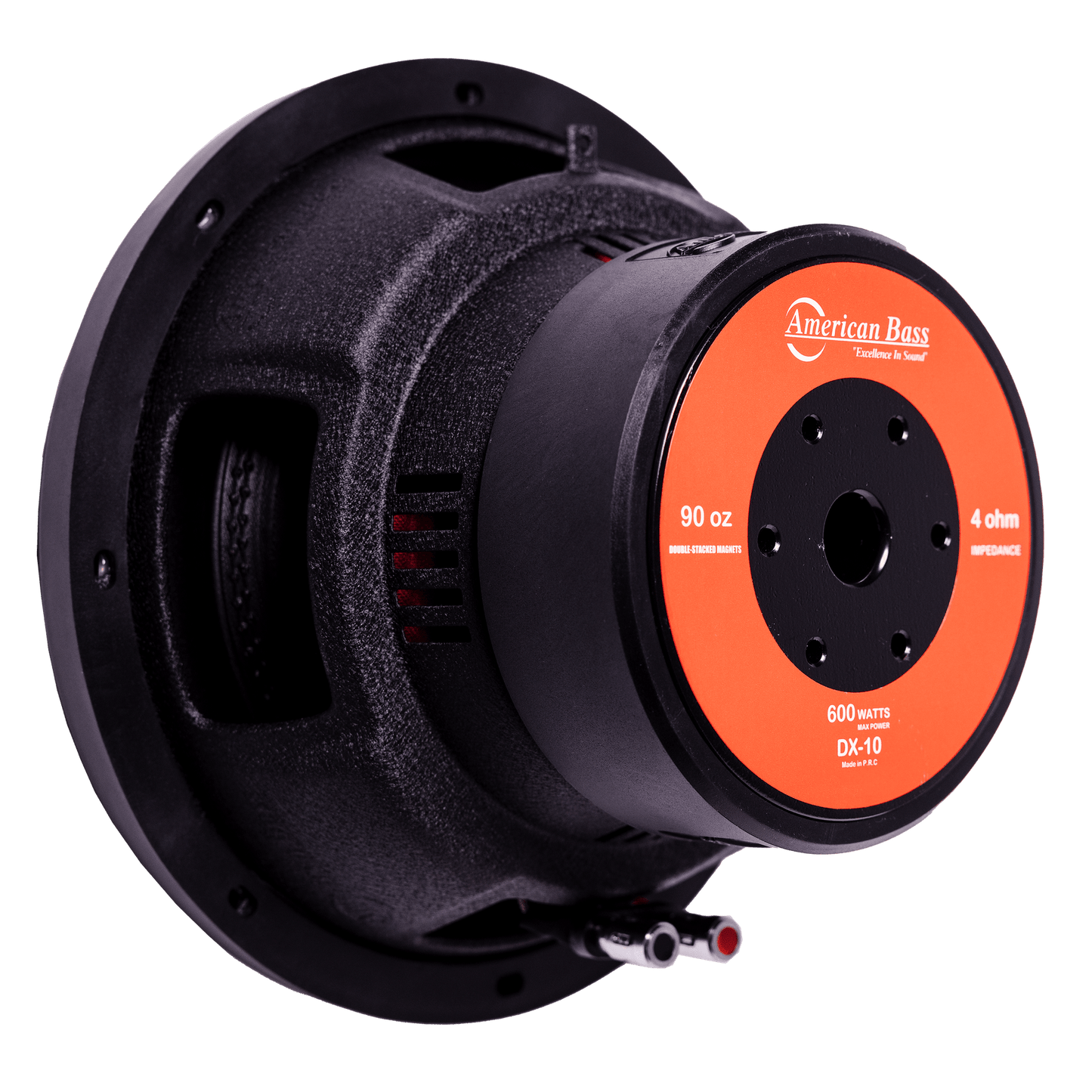

DX 10″ Car Subwoofer | 300 Watts RMS | Single Voice Coil 4 Ohm
DX 10″ Car Subwoofer | 300 Watts RMS | Single Voice Coil 4 Ohm
Regular price
$48.80 USD
Regular price
$112.28 USD
Sale price
$48.80 USD
Unit price
/
per
| PRODUCT INFO | |
| MPN | DX-104 |
| UPC | 636823698461 |
American Bass DX 10" Subwoofer for Car
SKU: DX-104
Get ready to shake the ground with American Bass's DX Series Subwoofer! This awesome entry level subwoofer brings unrivaled performance and features that can satisfy any bass enthusiast. Enjoy reliable power and deep, pounding bass tones day after day that will truly blow you away!Â
The DX series is American Bass's best-selling subwoofer for a reason: it packs a serious punch and never disappoints. Optimized for everyday use, this plug-and-play unit promises extreme lows with no surprises. So if you need quality, high-performance sub look no further than the DX Series from American Bass.
| POWER & PERFORMANCE | |
| RMS Power | 300.0 W |
| Max Power | 600.0 W |
| Nominal Impedance | 4 Ω |
| Sensitivity | 86.2 dB |
| Frequency Range | 30-500 Hz |
| T/S PARAMETERS | |
| Re | 3.2 Ω |
| Fs | 36.1 Hz |
| Qes | 0.54 |
| Qms | 4.98 |
| Qts | 0.48 |
| Vas | 20.7 L |
| Xmax | 11.0 mm |
| BL | 13.73 |
| Mms | 131.7 g |
| Sd | 330 cm² |
| Le | 3.32 mH |
| CONSTRUCTION | |
| Voice Coil Diameter | 2.0" |
| Voice Coil Type | Hi-temp 4-layer voice coil |
| Surround Material | Foam |
| Cone Material | Paper |
| Frame Material | Stamped steel |
| Magnet Type | Ferrite |
| Magnet Weight | 90 |
| SHIPPING INFO | |
| Item Weight | 12 lb" |
| Case Weight | 24 lbs |
| Outercase Quantity | 2" |
| Innercase Quantity | 1" |
| Package Length | 12" |
| Package Width | 12" |
| Package height | 16" |
| FITMENT | |
| Size | 10.0" |
| Cutout Diameter | 9.17" |
| Mounting Depth | 5.1" |
| PRODUCT INFO | |
| MPN | DX-104v2 |
| UPC | |

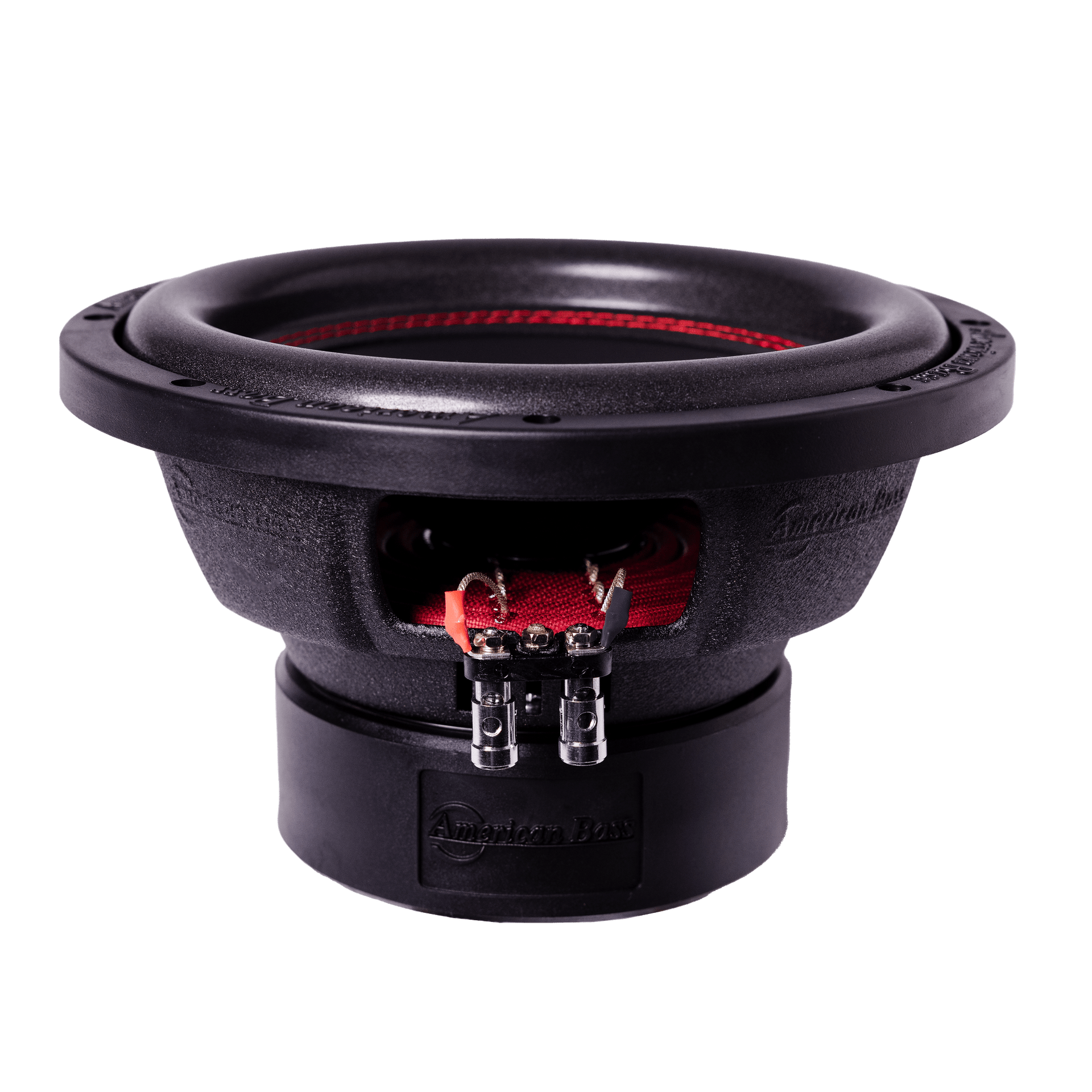

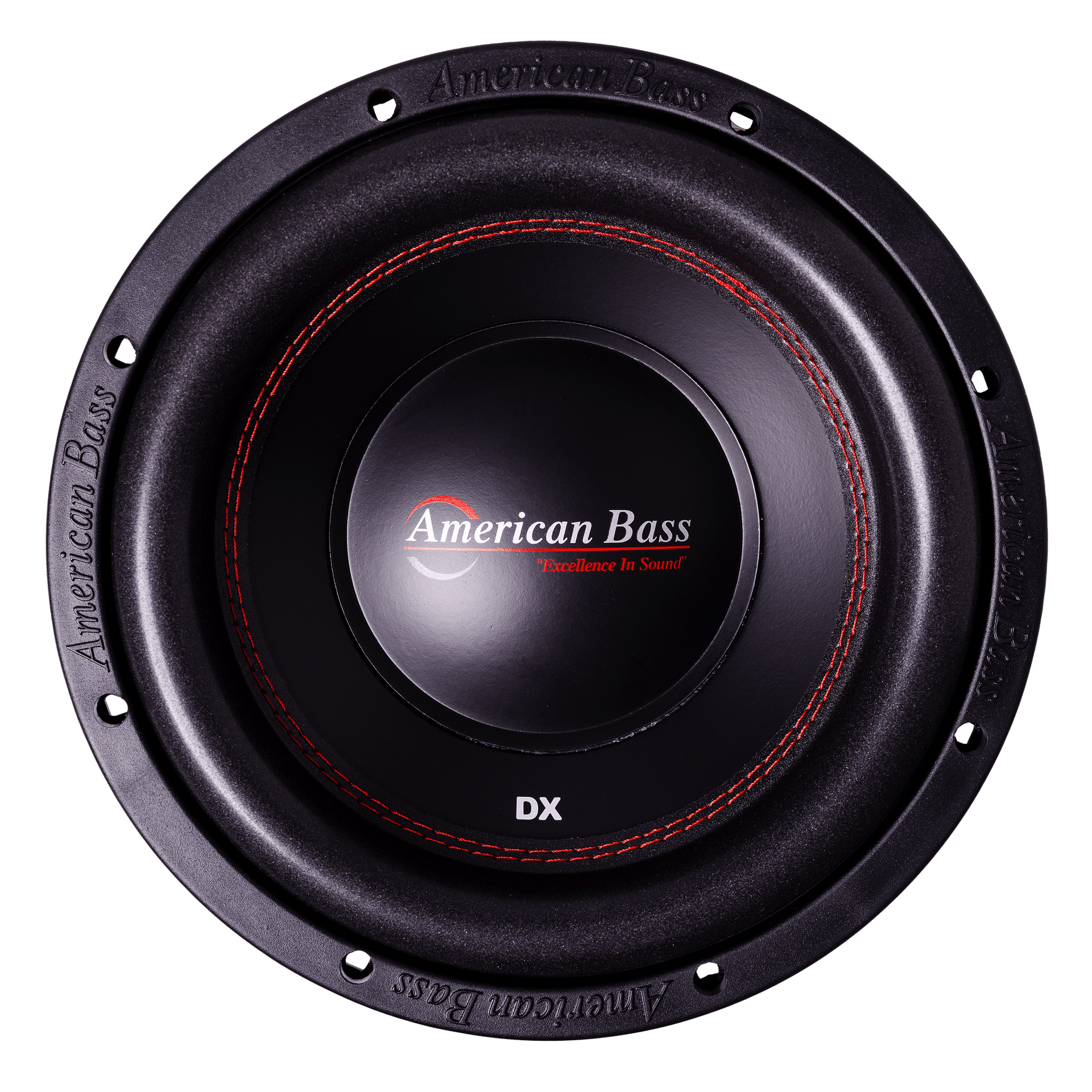

American Bass DX 10" Subwoofer for Car
SKU: DX-104v2
Get ready to shake the ground with American Bass's DX Series Subwoofer! This awesome entry level subwoofer brings unrivaled performance and features that can satisfy any bass enthusiast. Enjoy reliable power and deep, pounding bass tones day after day that will truly blow you away!Â
The DX series is American Bass's best-selling subwoofer for a reason: it packs a serious punch and never disappoints. Optimized for everyday use, this plug-and-play unit promises extreme lows with no surprises. So if you need quality, high-performance sub look no further than the DX Series from American Bass.
| POWER & PERFORMANCE | |
| RMS Power | 300.0 W |
| Max Power | 600.0 W |
| Nominal Impedance | 4 Ω |
| Sensitivity | 83.7 dB |
| Frequency Range | 30-500Hz |
| T/S PARAMETERS | |
| Re | 3.2 Ω |
| Fs | 33.6 Hz |
| Qes | 0.53 |
| Qms | 5.89 |
| Qts | 0.49 |
| Vas | 21.6 L |
| Xmax | 0.47 mm |
| BL | 14.1 |
| Mms | 158.3 g |
| Sd | 330 cm² |
| Le | 1.76 mH |
| CONSTRUCTION | |
| Voice Coil Diameter | 2.0" |
| Voice Coil Type | EISV |
| Surround Material | Stitched Foam |
| Cone Material | Paper |
| Frame Material | Heavy Duty |
| Magnet Type | Ferrite |
| Magnet Weight | 90 |
| SHIPPING INFO | |
| Item Weight | 12 lb" |
| Case Weight | 24 lbs |
| Outercase Quantity | 2" |
| Innercase Quantity | 1" |
| Package Length | 12" |
| Package Width | 12" |
| Package height | 16" |
| FITMENT | |
| Size | 10.0" |
| Cutout Diameter | 9.24" |
| Mounting Depth | 5.52" |
