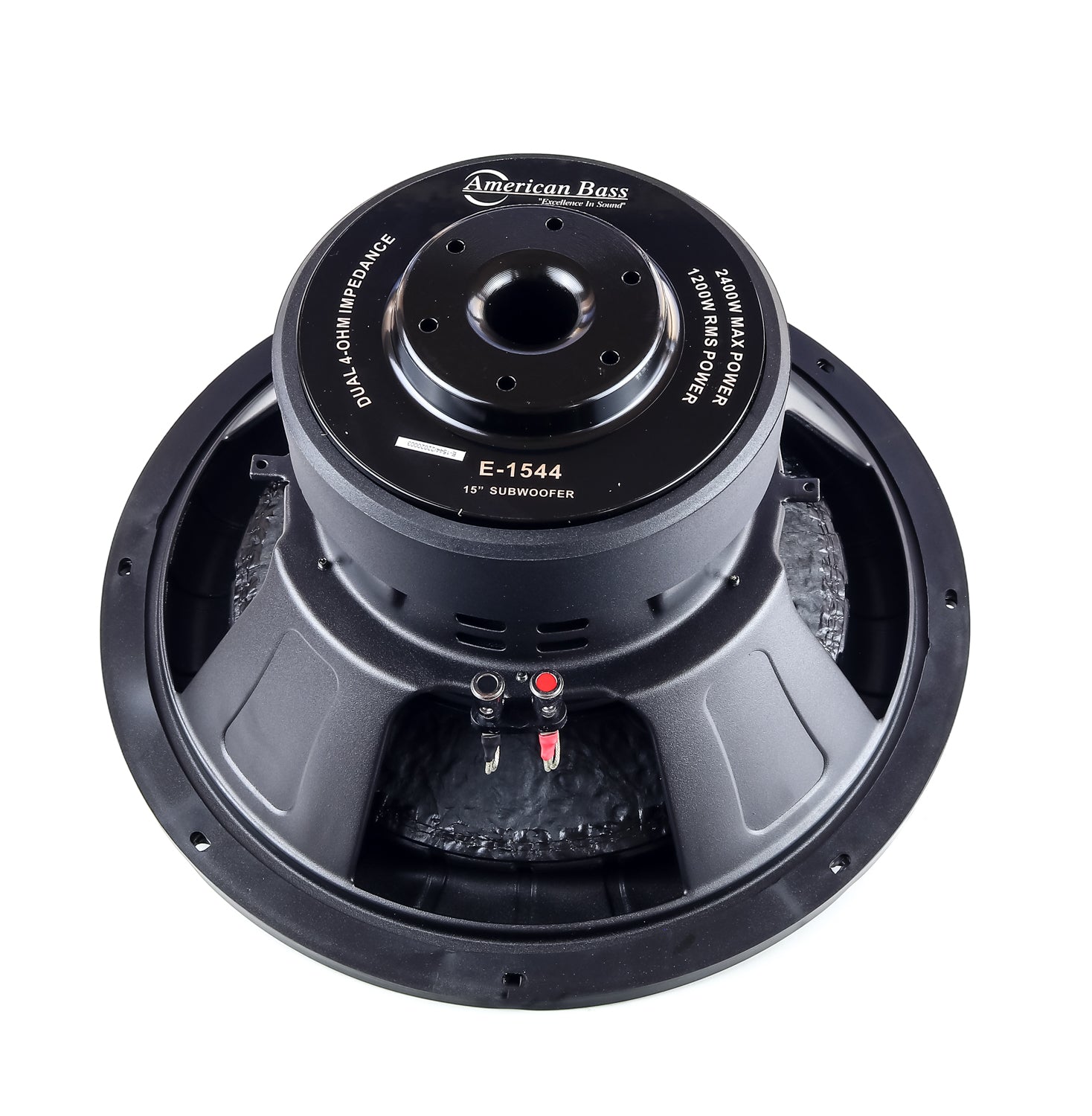

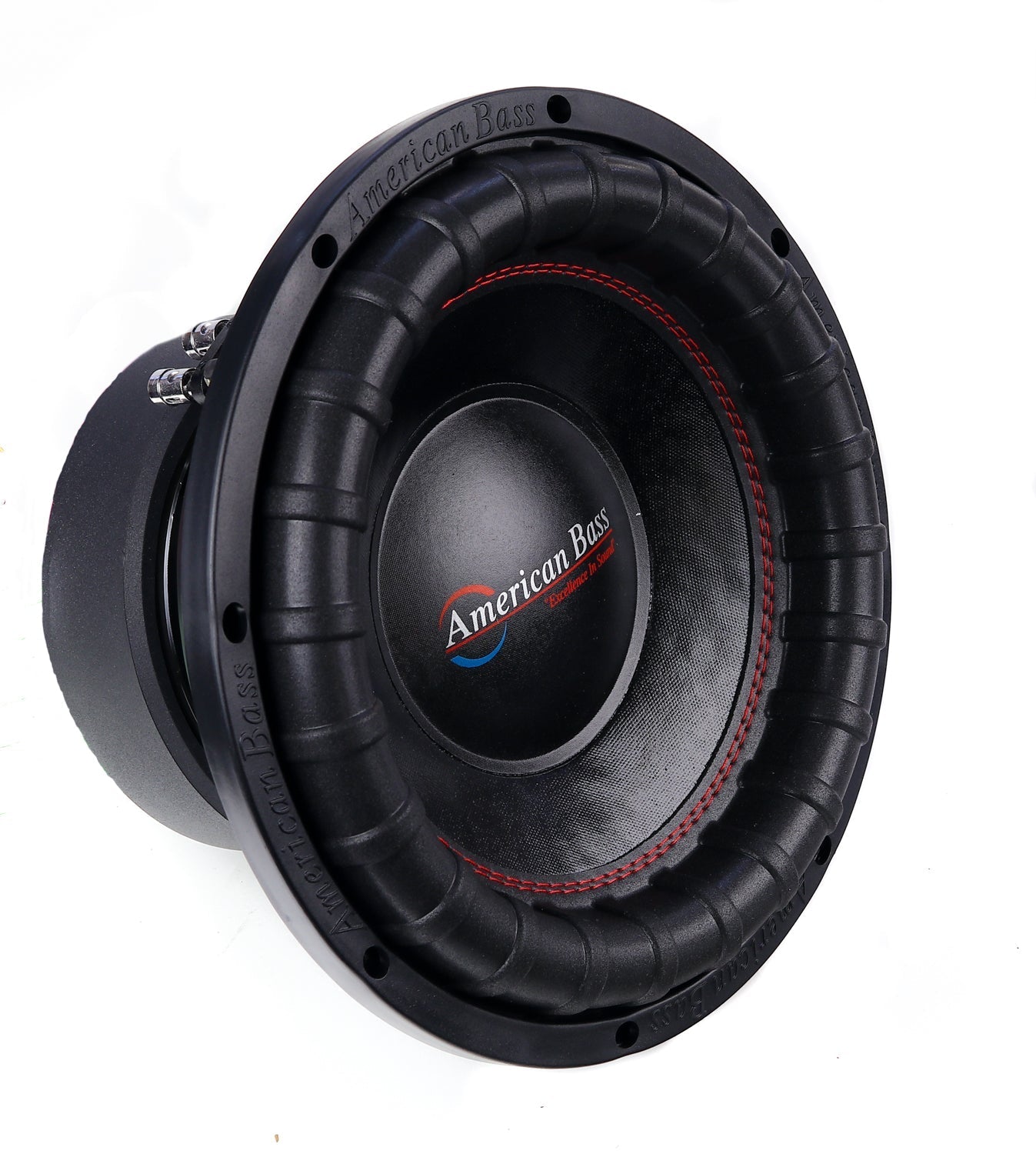

Elite 15″ Car Subwoofer | 1200 Watts RMS | Dual Voice Coil 4 Ohm
Elite 15″ Car Subwoofer | 1200 Watts RMS | Dual Voice Coil 4 Ohm
| PRODUCT INFO | |
| MPN | ELITE-1544 |
| UPC | 636823815448 |
Elite 15" Subwoofer for Car
SKU: ELITE-1544
Looking to get the power of an XFL subwoofer without breaking the bank? You’re in luck! American Bass Elite Series subs pack a mighty punch and are close in performance to the XFL - except these bad boys don't come with a hefty price tag. Packing a whopping 150oz stacked magnet for maximum efficiency, plus a fiber-added non-pressed cone and hi-roll high-density foam surround with double stitching, you can ensure your sound is pumping at all times. American Bass doesn't mess around - each subwoofer has a 3†hi-temp 4-layer voice coil on an aluminum bobbin for up to 2400 Watts Max of power handling. Don't suffer through dull, flat music any longer - get an American Bass Elite Series subwoofer and feel like royalty with audio perfection.
| POWER & PERFORMANCE | |
| RMS Power | 1200 W |
| Max Power | 2400.0 W |
| Nominal Impedance | 4 Ω |
| Sensitivity | 87.3 dB |
| T/S PARAMETERS | |
| Re | 6.8 Ω |
| Fs | 31.757 Hz |
| Qes | 0.605 |
| Qms | 4.025 |
| Qts | 0.526 |
| Vas | 66.266 L |
| Xmax | 14.0 mm |
| BL | 28.151 |
| Mms | 338.462 g |
| Sd | 0.08 cm² |
| Le | 8.701 mH |
| CONSTRUCTION | |
| Voice Coil Diameter | 3.0" |
| Voice Coil Type | EISV |
| Surround Material | Foam |
| Cone Material | Paper |
| Frame Material | Stamped Steel |
| Magnet Type | Ferrite |
| Magnet Weight | 150 Oz |
| SHIPPING INFO | |
| Item Weight | 31 lb" |
| Case Weight | 31 lbs |
| Outercase Quantity | 1" |
| Innercase Quantity | 1" |
| Package Length | 18" |
| Package Width | 18" |
| Package height | 12" |
| FITMENT | |
| Size | 15.0" |
| Cutout Diameter | 13.5039" |
| Mounting Depth | 7.71654" |
