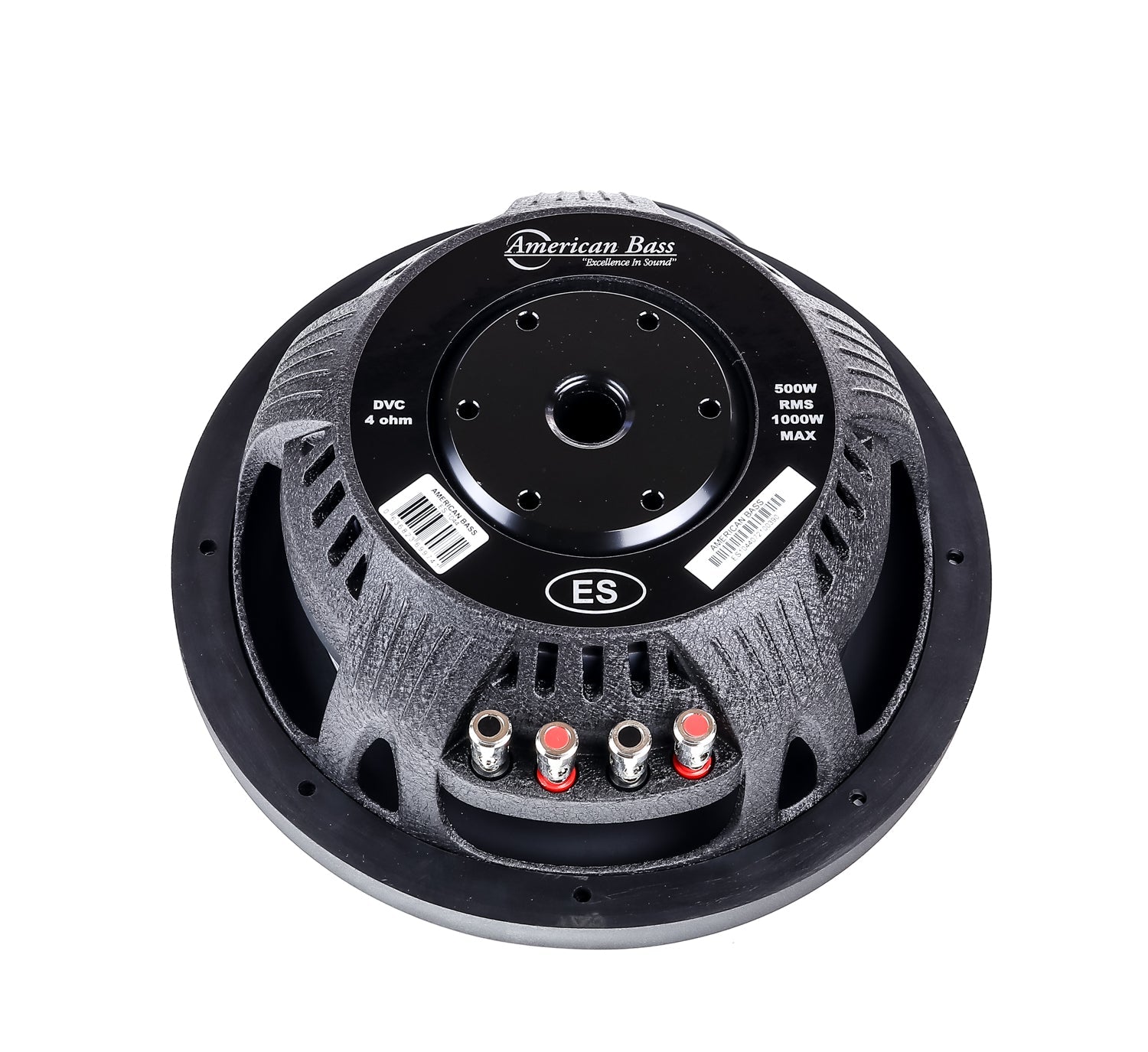

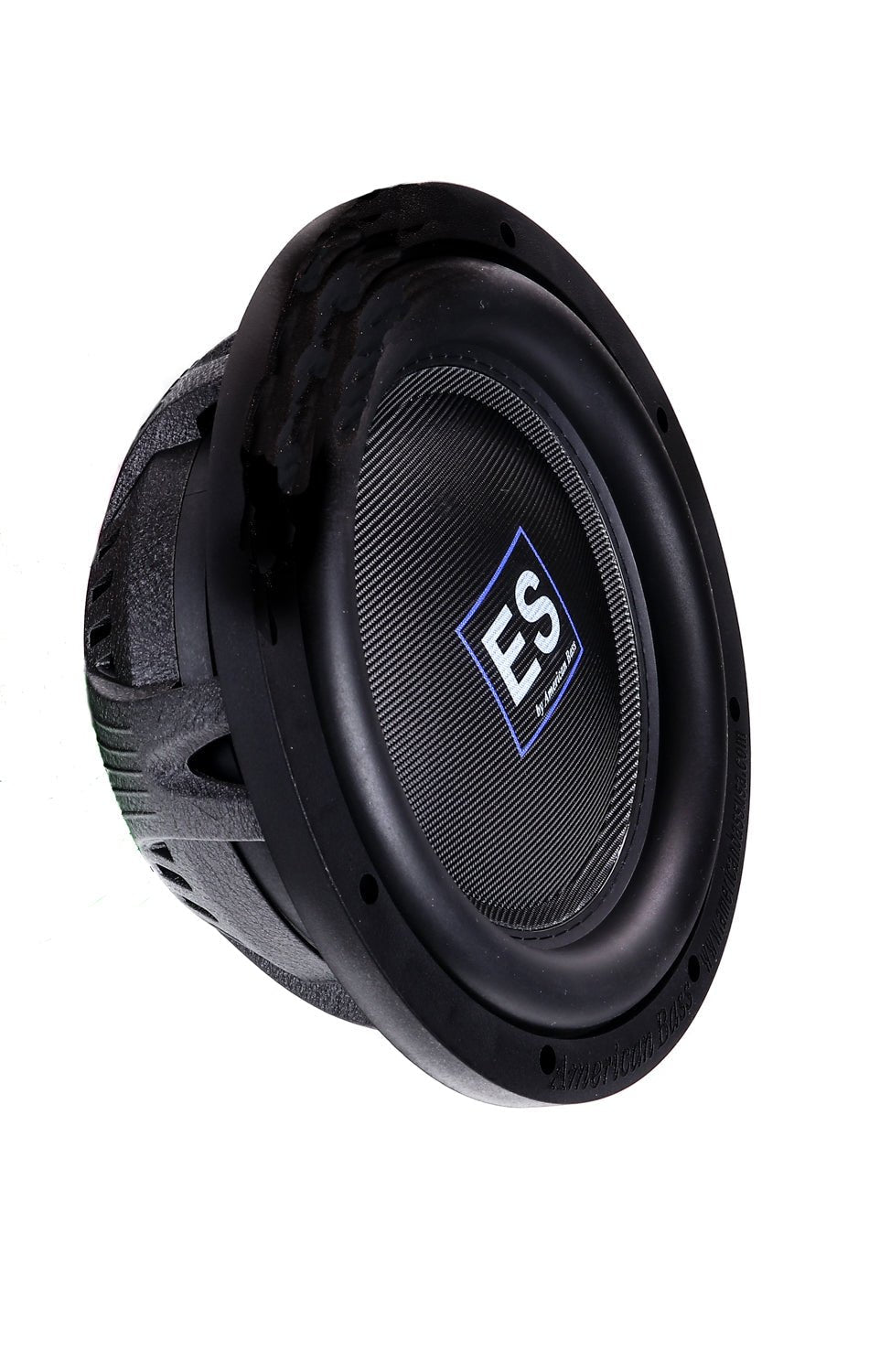

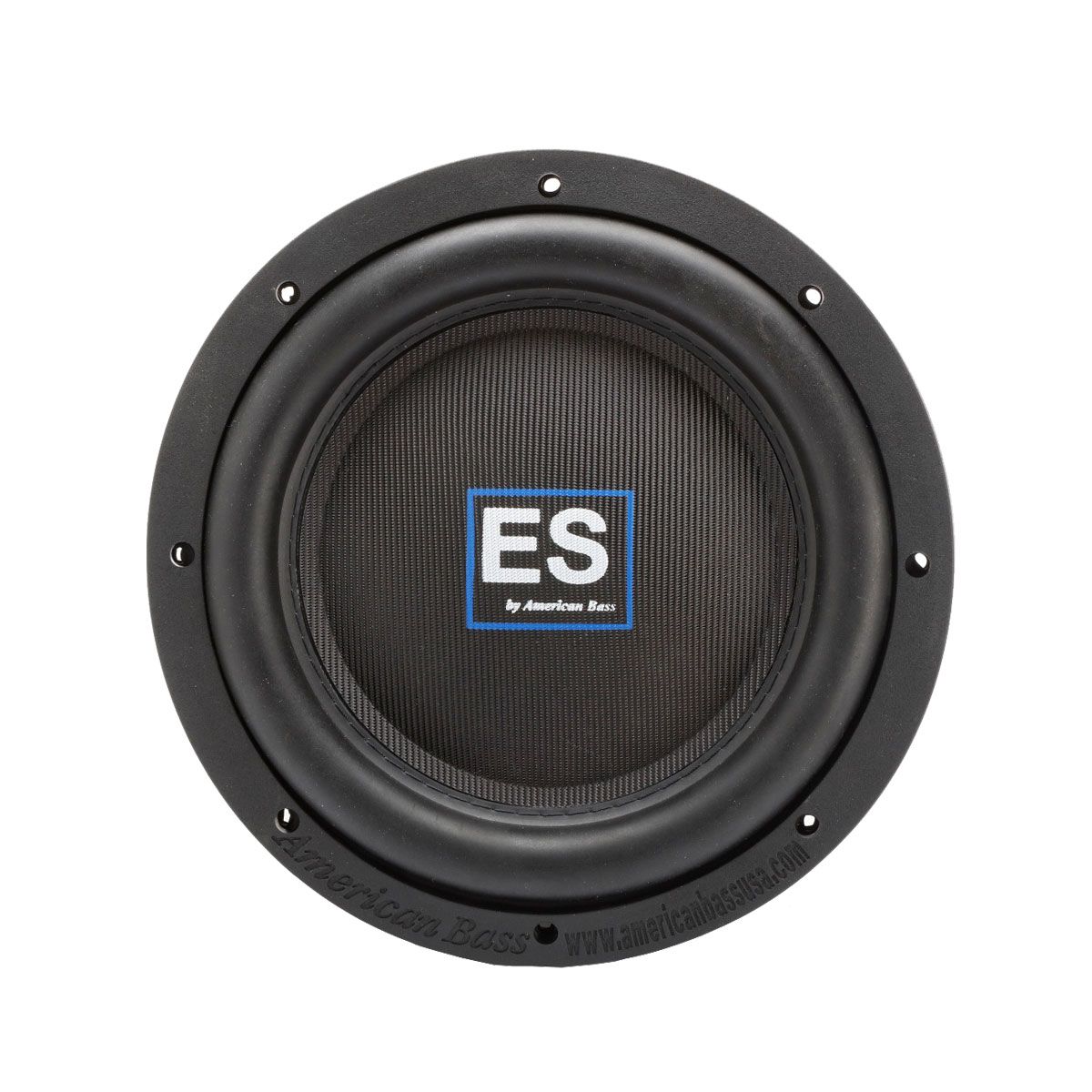

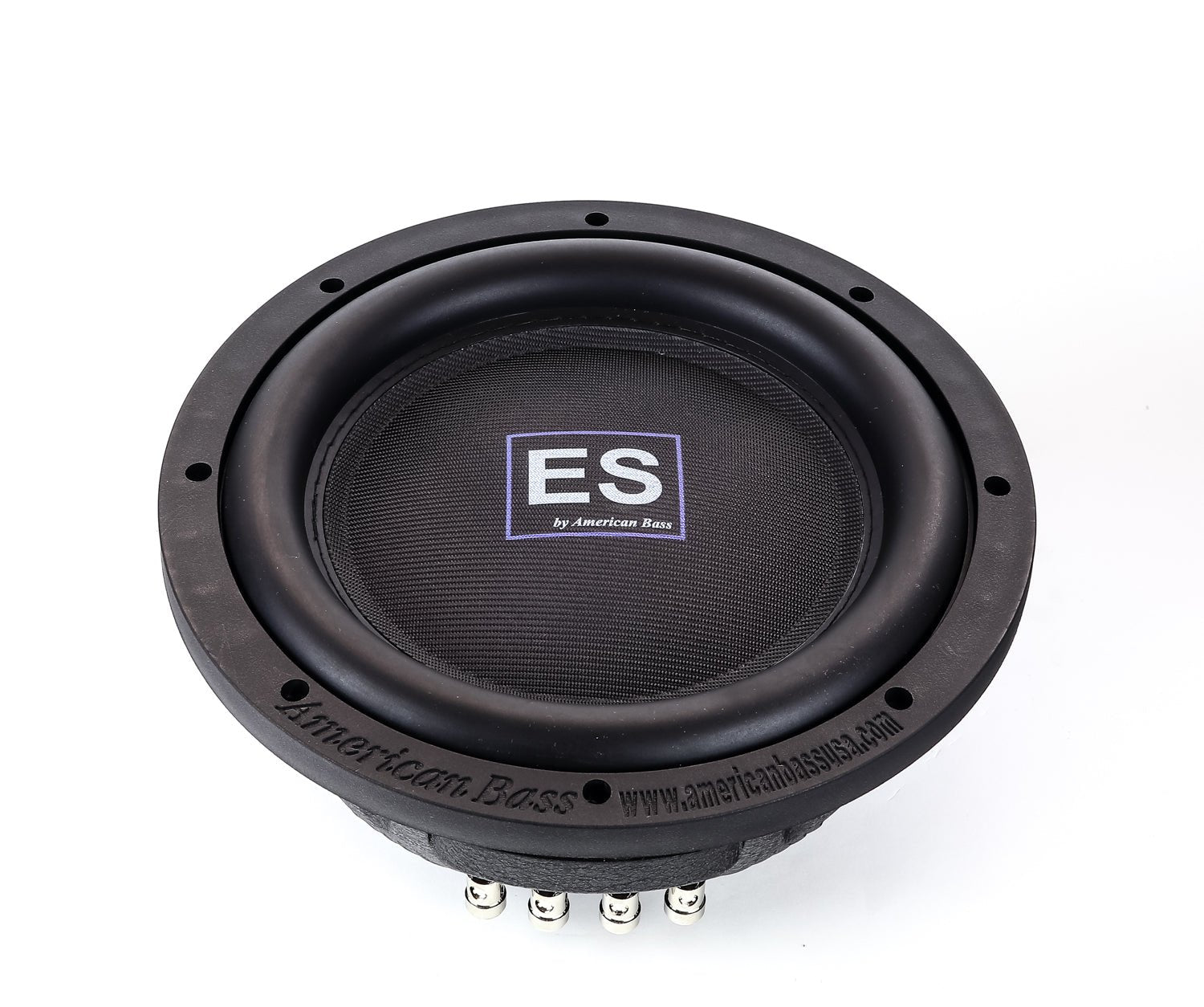

ES 10″ Car Subwoofer | 500 Watts RMS | Dual Voice Coil 2 Ohm or 4 Ohm (Shallow Mount)
ES 10″ Car Subwoofer | 500 Watts RMS | Dual Voice Coil 2 Ohm or 4 Ohm (Shallow Mount)
Regular price
$172.54 USD
Regular price
$213.78 USD
Sale price
$172.54 USD
Unit price
/
per
| PRODUCT INFO | |
| MPN | ES-1022 |
| UPC | 6015704697498 |
Need some bass in your life, but don't have the space? Look no further than American Bass' ES Slim Subwoofer. At only 3.6" to 4.3" mounting depth, this woofer is as slim as they come but don't let its size fool you - packing a 2.5" DVC (Dual Voice Coil) sitting atop a 65oz Magnet and Fiberglass Reinforced Dust Cap, it can put out up to 1500 watts of powerful sound! The ES Subwoofer is available in 10" and 12" sizes so whatever your set-up needs, there's something here for you. Get more from less with an ES Slim Subwoofer from American Bass.
| POWER & PERFORMANCE | |
| RMS Power | 500 W |
| Max Power | 1000 W |
| Nominal Impedance | 2 Ω |
| Sensitivity | 85 dB |
| Frequency Range | 20 – 500Hz |
| T/S PARAMETERS | |
| Re | 1.09 Ω |
| Fs | 38.8 Hz |
| Qes | 1.208 |
| Qms | 8.575 |
| Qts | 1.059 |
| Vas | 12.845 L |
| Xmax | 11.5 mm |
| BL | 6.978 |
| Mms | 222.0 g |
| Sd | 346.36 cm² |
| Le | 0.676 mH |
| CONSTRUCTION | |
| Voice Coil Diameter | 2.5" |
| Voice Coil Type | DVC 2 Ohm 2.5†Aluminum |
| Surround Material | Stitched Rubber Surround |
| Cone Material | Paper |
| Frame Material | Aluminum |
| Magnet Type | Ferrite |
| Magnet Weight | 65 Oz |
| SHIPPING INFO | |
| Item Weight | 16 lb" |
| Case Weight | 32 lbs |
| Outercase Quantity | 2 |
| Innercase Quantity | 1 |
| Package Length | 14" |
| Package Width | 14" |
| Package height | 13" |
| FITMENT | |
| Size | 10.0" |
| Cutout Diameter | 9.25" |
| Mounting Depth | 3.66" |
| PRODUCT INFO | |
| MPN | ES-1044 |
| UPC | 636823699741 |
Need some bass in your life, but don't have the space? Look no further than American Bass' ES Slim Subwoofer. At only 3.6" to 4.3" mounting depth, this woofer is as slim as they come but don't let its size fool you - packing a 2.5" DVC (Dual Voice Coil) sitting atop a 65oz Magnet and Fiberglass Reinforced Dust Cap, it can put out up to 1500 watts of powerful sound! The ES Subwoofer is available in 10" and 12" sizes so whatever your set-up needs, there's something here for you. Get more from less with an ES Slim Subwoofer from American Bass.
| POWER & PERFORMANCE | |
| RMS Power | 500.0 W |
| Max Power | 1000.0 W |
| Nominal Impedance | 4 Ω |
| Sensitivity | 84.0 dB |
| Frequency Range | 35Hz – 500Hz |
| T/S PARAMETERS | |
| Re | 2 Ω |
| Fs | 35.0 Hz |
| Qes | 1.551 |
| Qms | 9.641 |
| Qts | 1.024 |
| Vas | 14.4095 L |
| Xmax | 11.0 mm |
| BL | 8.668 |
| Mms | 211.04 g |
| Sd | 346.36 cm² |
| Le | 0.986 mH |
| CONSTRUCTION | |
| Voice Coil Diameter | 2.5" |
| Voice Coil Type | EISV |
| Surround Material | Rubber |
| Cone Material | Fiberglass |
| Frame Material | Aluminum |
| Magnet Type | Ferrite |
| Magnet Weight | 65 Oz |
| SHIPPING INFO | |
| Item Weight | 16 lb" |
| Case Weight | 32 lbs |
| Outercase Quantity | 2 |
| Innercase Quantity | 1 |
| Package Length | 14" |
| Package Width | 14" |
| Package height | 13" |
| FITMENT | |
| Size | 10.0" |
| Cutout Diameter | 9.25" |
| Mounting Depth | 3.66" |
