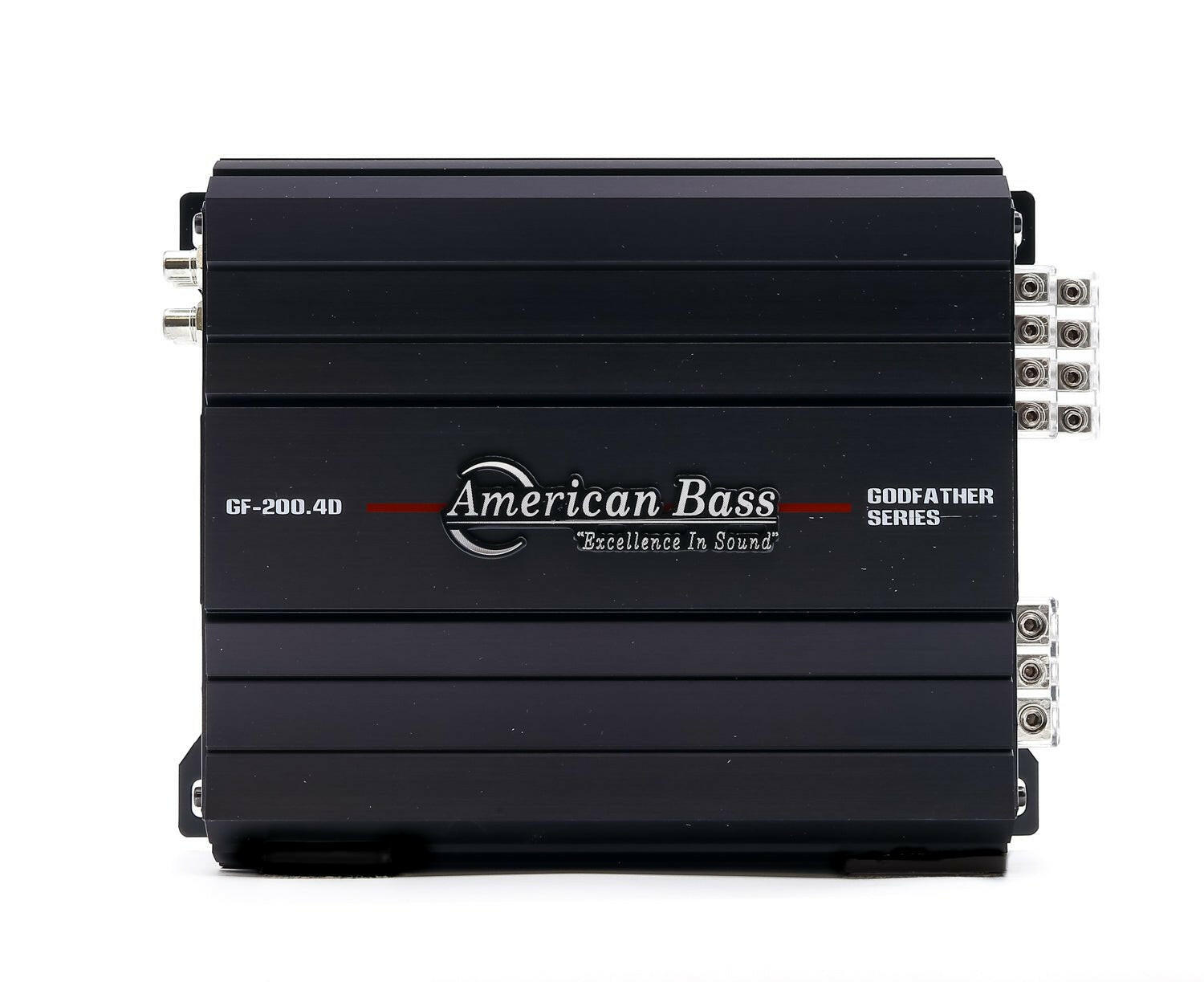

Meet the American Bass Godfather Amplifier, the compact dynamo that'll make your car audio system an offer it can't refuse. This full-range digital circuit amplifier boasts 2-ohm stereo stability and a slew of customizable options, including variable high and low pass filters, multiply x1, x10, and band-pass capabilities, ensuring a powerful sound worthy of the Corleone family. With a double-sided printed circuit board and surface mount technology, the Godfather delivers a sleek, dependable performance, making your car audio system the Don of the streets. The wired remote control and clipping indicator keep you in command, while the multi-way protection circuitry safeguards your audio empire from DC, speaker short, thermal, and voltage threats. Make your car audio experience an offer it can't refuse with this small yet mighty wiseguy, because in the world of sound, it's not personal; it's strictly business.
NO OF CHANNELS | 4 CHANNEL |
CONGIGURATION | FULL RANGE DIGITAL |
4OHM RMS POWER | 110W X 4 |
2OHM RMS POWER | 180W X 4 |
1OHM RMS POWER | NA |
4OHM MONO POWER | 360W X 2 |
FREQUENCY RESPONSE | 10Hz - 40KHz |
SIGNAL TO NOISE RATIO | 85Db |
EFFICIENCY @ 4OHM | OVER 70% |
DAMPING FACTOR | 150< |
INPUT SENSITIVITY | 6V - 0.2V |
SUBSONIC FILTER | NA |
LOW PASS FILTER | 50Hz - 8000Hz |
MULTIPLY (X1, X10) | 500Hz - 8KHz |
HIGH PASS FILTER | 20Hz - 800Hz |
MULTIPLY (X1, X10) | 200Hz - 8KHz |
BASS BOOST @45HZ | NA |
THD @ 4OHM | <0.1% |
FUSE RATING | 60A |
DIMENSIONS (LxWxH) | 7.88L x 7.15W x 2.33H inches |
