Up To 2500 Watt Amplifiers.

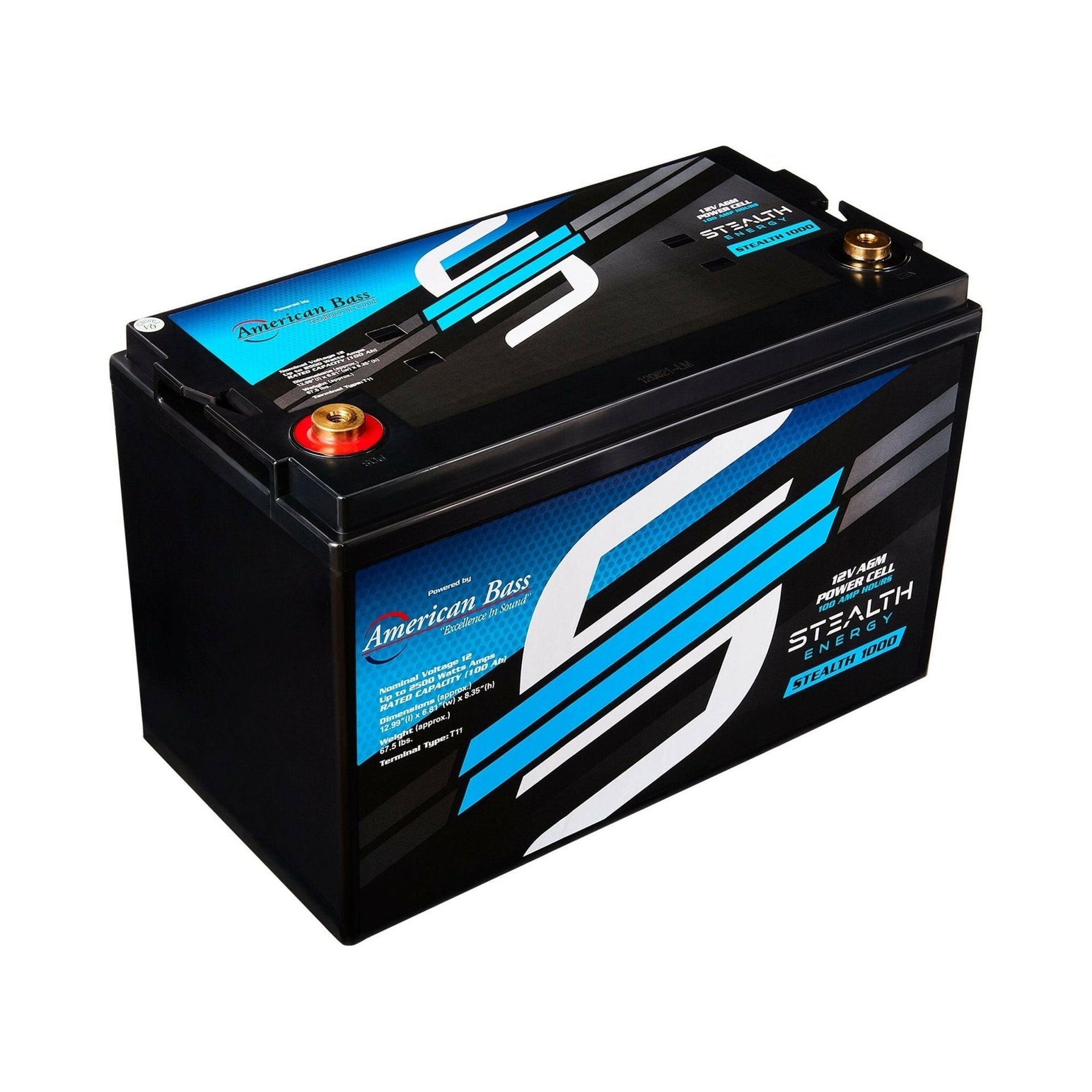

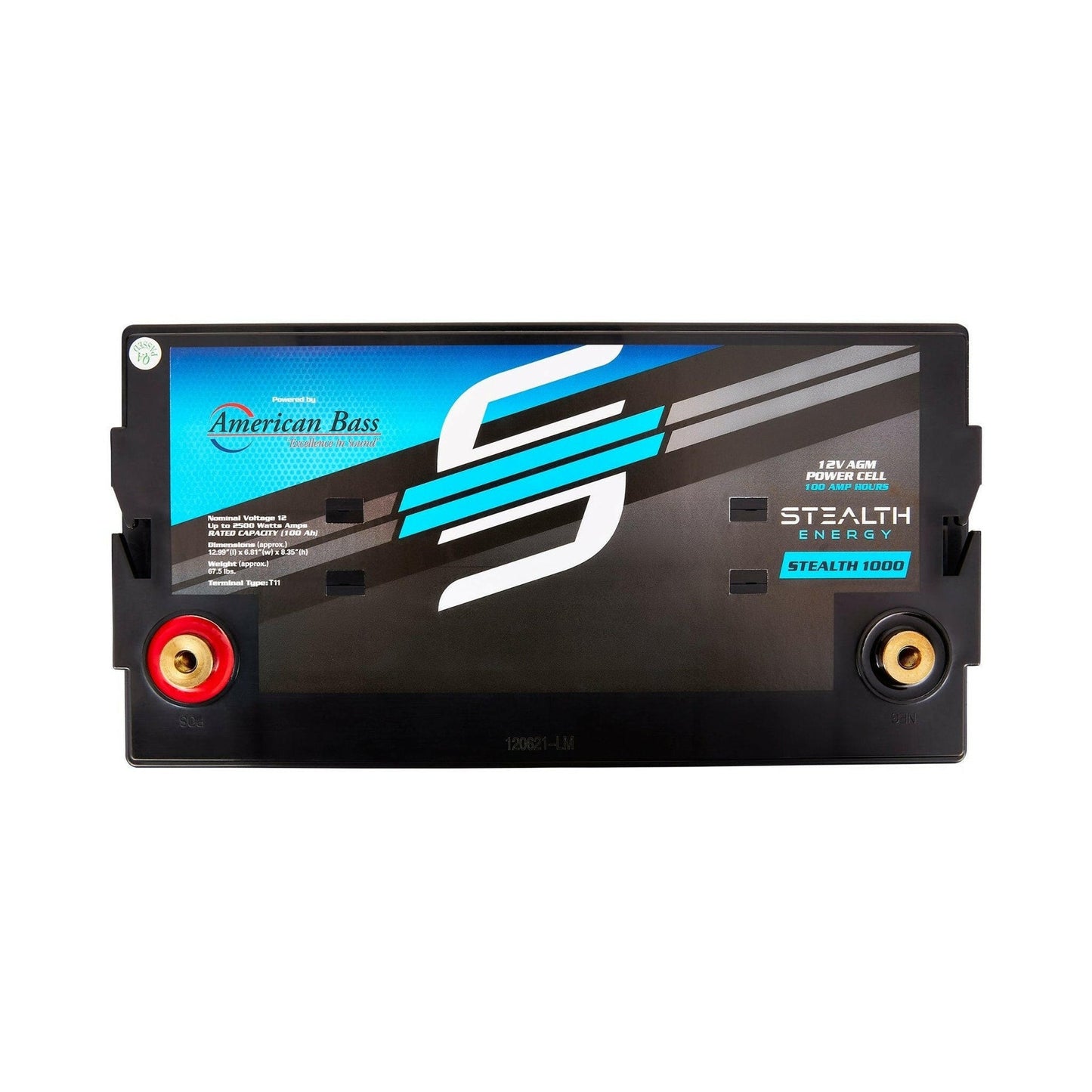

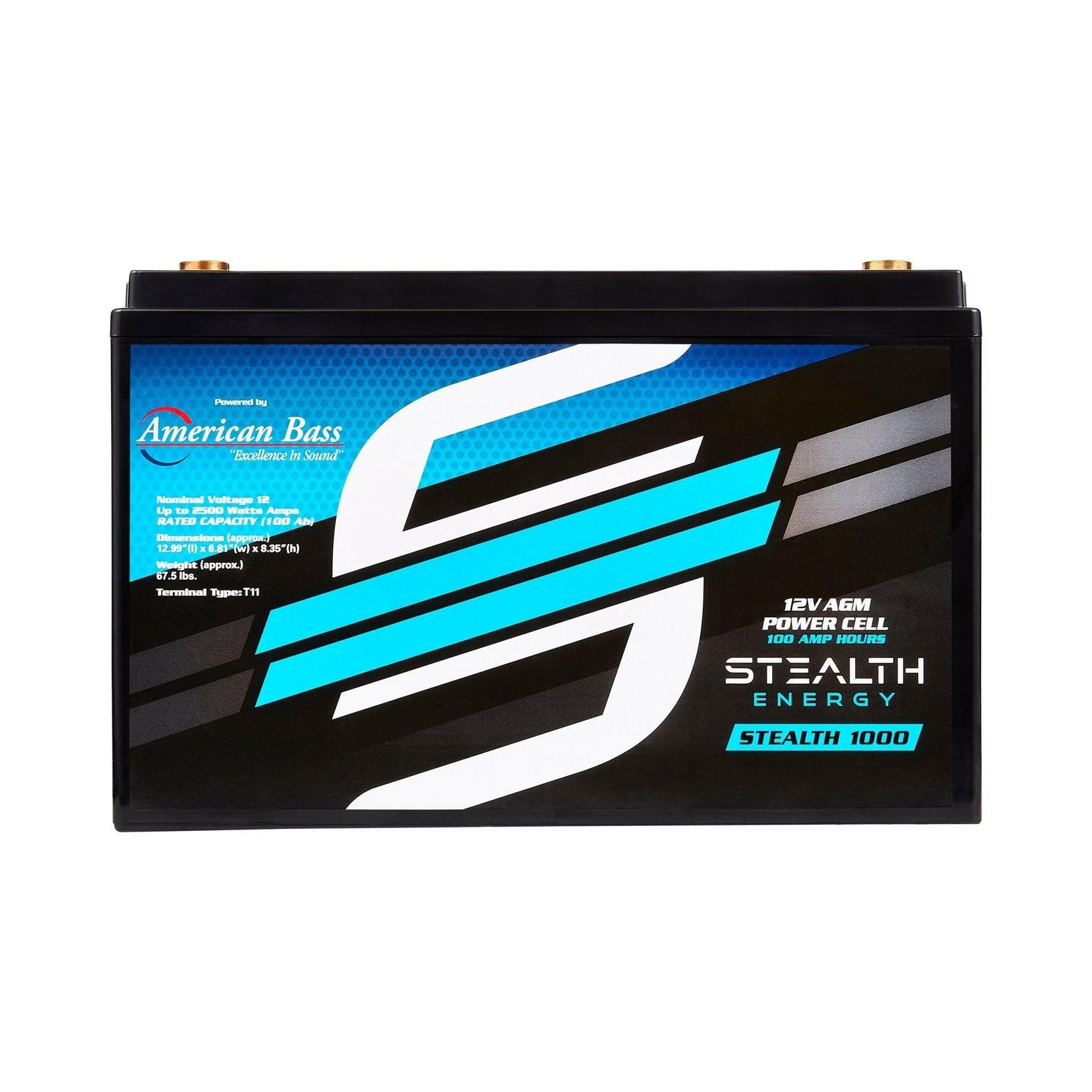

12V AGM Battery, 100 AH
| NOMINAL VOLTAGE |
12V
|
| NOMINAL CAPACITY(20HR) |
100.0AH
|
| APPROX WEIGHT |
30.6 Kg (67.5Ibs)
|
| TERMINAL |
T11 |
| CONTAINER MATERIAL |
ABS |
| MAX. DISCHARGE CURRENT |
1200A (5s) |
| INTERNAL RESISTANCE APPROX |
Approx 4.9mΩ |
| NOMINAL OPERATING TEMP. RANGE |
25+3 C (77+5 F ) |
| DIMENSION |
-
Length: 330+3mm (12.99 inches)
-
Width: 173+2mm (6.81 inches)
-
Container Height: 212+3mm (8.35 inches)
-
Total Height (with Terminal): 220+3mm (8.66 inches)
|
| RATED CAPACITY |
-
107.2 AH/5.36A: (20hr ,1.80V/cell,25 C/77 F)
-
100.0 AH/10.0A: (10hr ,1.80V/cell,25 C/77 F)
-
87.7 AH/17.5A: (5hr ,1.75V/cell,25 C/77 F)
-
79.5 AH/26.5A: (3hr ,1.75V/cell,25 C/77 F)
-
64.6 AH/64.6A: (1hr ,1.60V/cell,25 C/77 F)
|
| CAPACITY AFFECTED BY TEMPERATURE |
- 40 C (104 F): 103%
- 25 C (77 F): 100%
- 0 C (32 F): 86%
|
| OPERATING TEMP.RANGE |
-
Discharge: -15~50 C (5~122 F)
-
Charge: 0~40 C (32~104 F)
-
Storage: -15~40 C (5~104 F)
|
|
CYCLE USE
|
- Initial Charging Current less than 30.0A.Voltage
- 14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C
|
|
STANDBY USE
|
- No limit on Initial Charging Current Voltage
- 13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C
|
|
SELF DISCHARGE
|
- Batteries may be stored for up to 6 months
- at 25 C(77 F) and then a freshening charge is required.
- For higher temperatures the time interval will be shorter.
|
