Up To 900 Watt Amplifiers

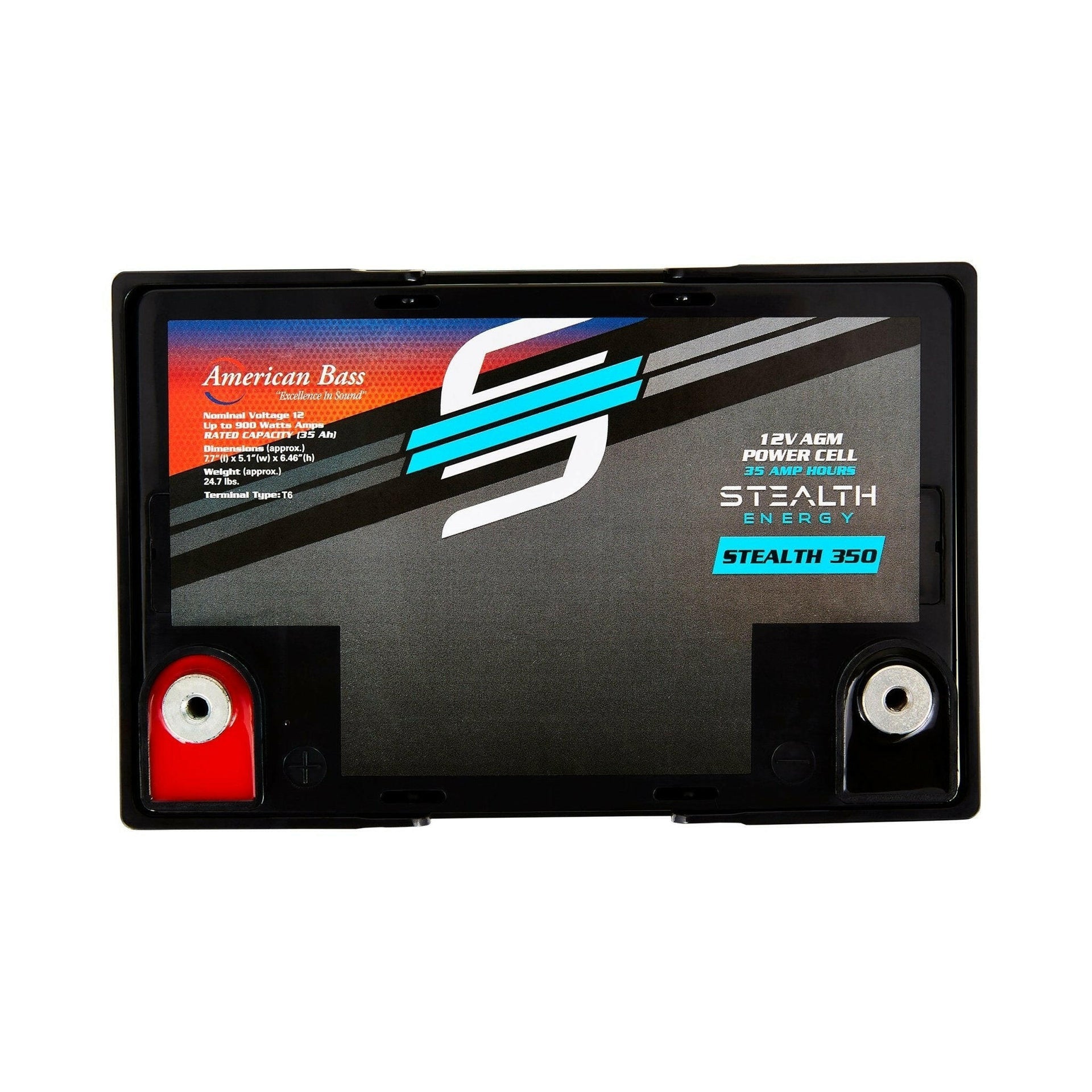

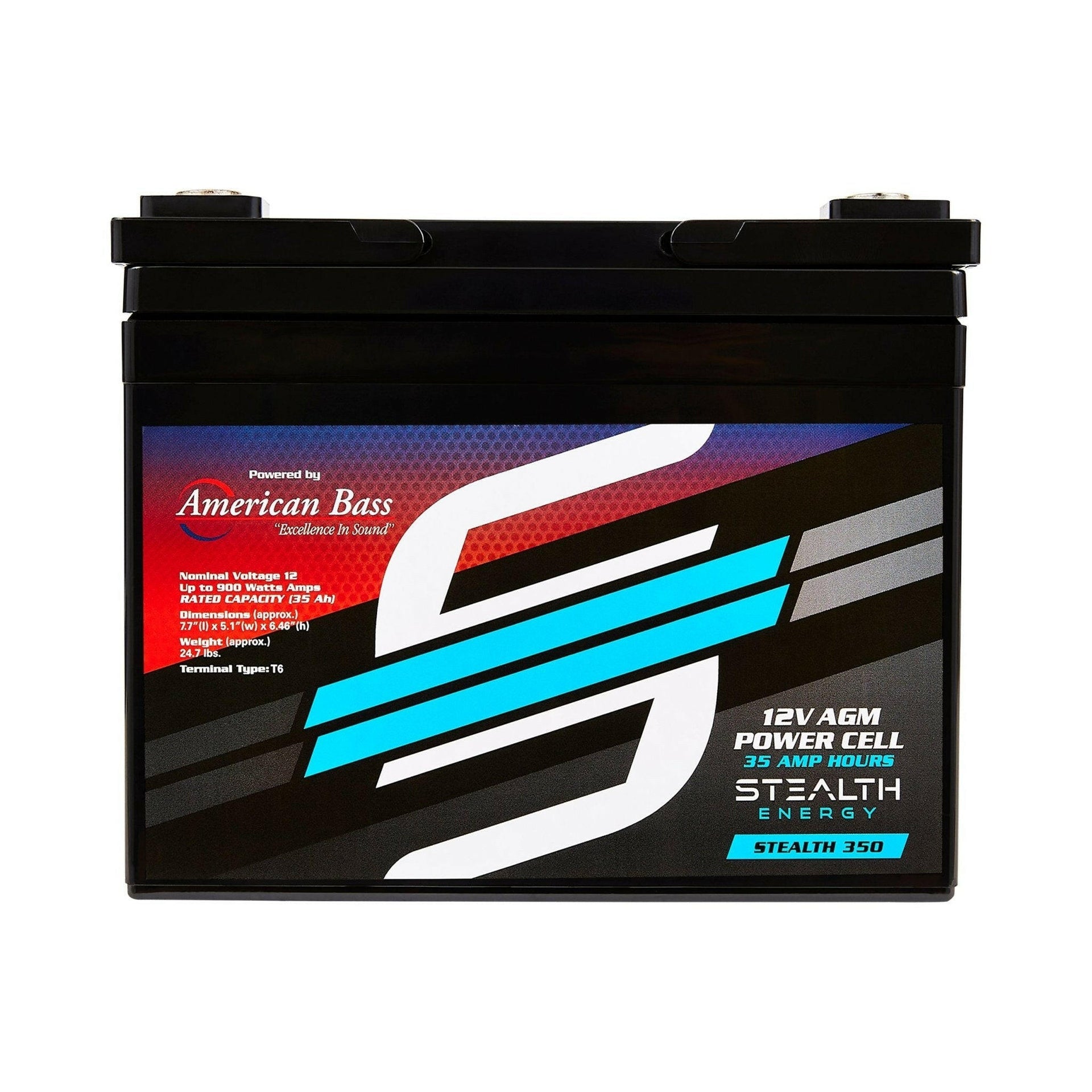

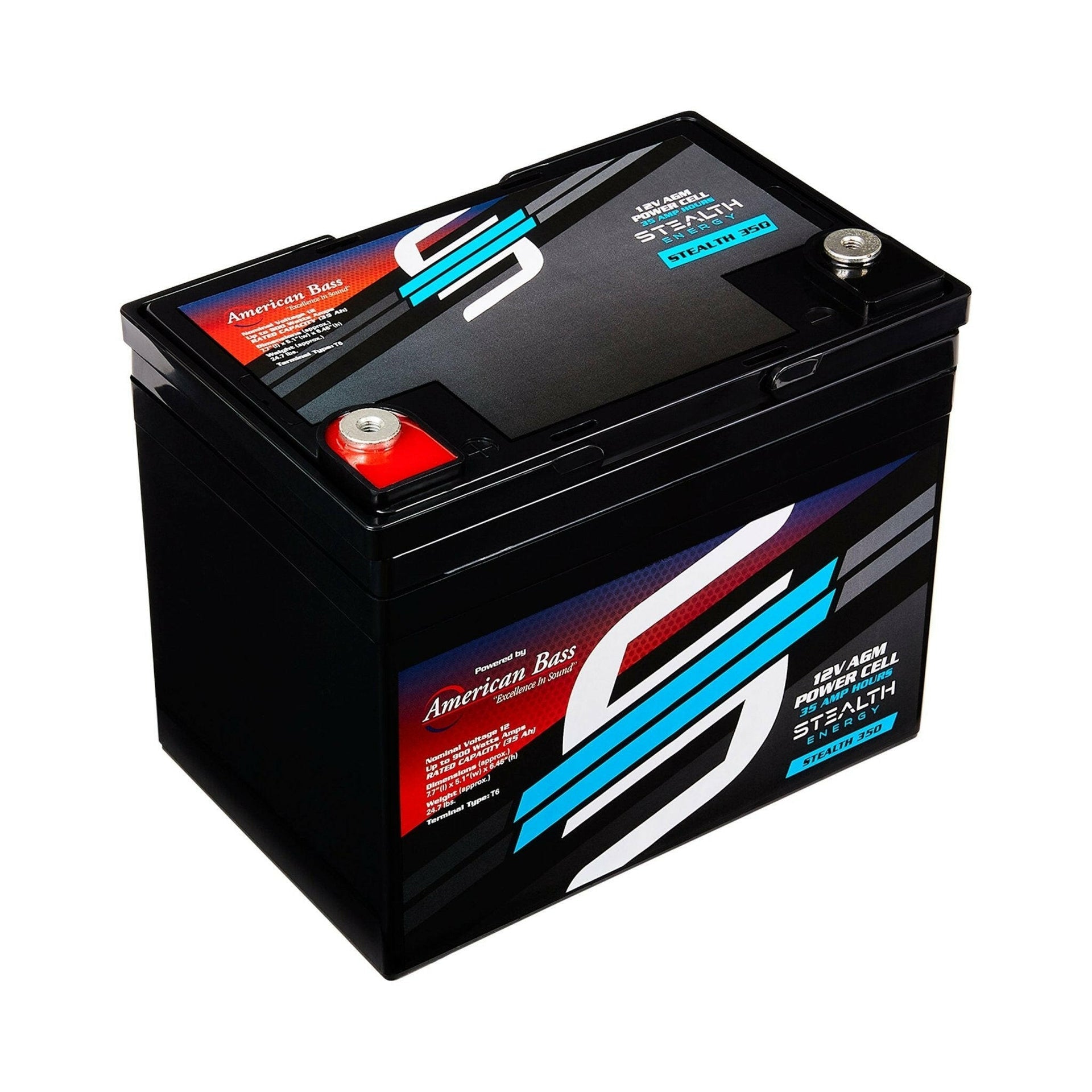

12V AGM Battery, 35 AH
| NOMINAL VOLTAGE |
12V
|
| NOMINAL CAPACITY(20HR) |
35.0AH |
| APPROX WEIGHT |
Approx 11.2 kg (24.7lbs |
| TERMINAL |
T6 |
| CONTAINER MATERIAL |
ABS |
| MAX. DISCHARGE CURRENT |
525A (5s)
|
| INTERNAL RESISTANCE APPROX |
Approx 11mΩ
|
| NOMINAL OPERATING TEMP. RANGE |
25+3 C (77+5 F )
|
| DIMENSION |
-
Length: 195+2mm (7.68 inches)
-
Width: 130+2mm (5.12 inches)
-
Container Height: 164+2mm (6.46 inches)
-
Total Height (with Terminal): 167+2mm (6.57 inches)
|
| RATED CAPACITY |
-
35.0 AH/1.75A: (20hr ,1.80V/cell,25 C/77 F)
-
32.6 AH/3.26A: (10hr ,1.80V/cell,25 C/77 F)
-
29.7 AH/5.95A: (5hr ,1.75V/cell,25 C/77 F)
-
26.8 AH/8.93A: (3hr ,1.75V/cell,25 C/77 F)
-
22.0 AH/22.0A: (1hr ,1.60V/cell,25 C/77 F)
|
| CAPACITY AFFECTED BY TEMPERATURE |
- 40 C (104 F): 103%
- 25 C (77 F): 100%
- 0 C (32 F): 86%
|
| OPERATING TEMP.RANGE |
-
Discharge: -15~50 C (5~122 F)
-
Charge: 0~40 C (32~104 F)
-
Storage: -15~40 C (5~104 F)
|
|
CYCLE USE
|
- Initial Charging Current less than 10.5A.
- Voltage 0 0 0 14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C
|
|
STANDBY USE
|
- No limit on Initial Charging Current Voltage
- 13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C
|
|
SELF DISCHARGE
|
- Batteries may be stored for up to 6 months
- at 25 C(77 F) and then a freshening charge is required.
- For higher temperatures the time interval will be shorter.
|
