Up To 1500 Watt Amplifiers

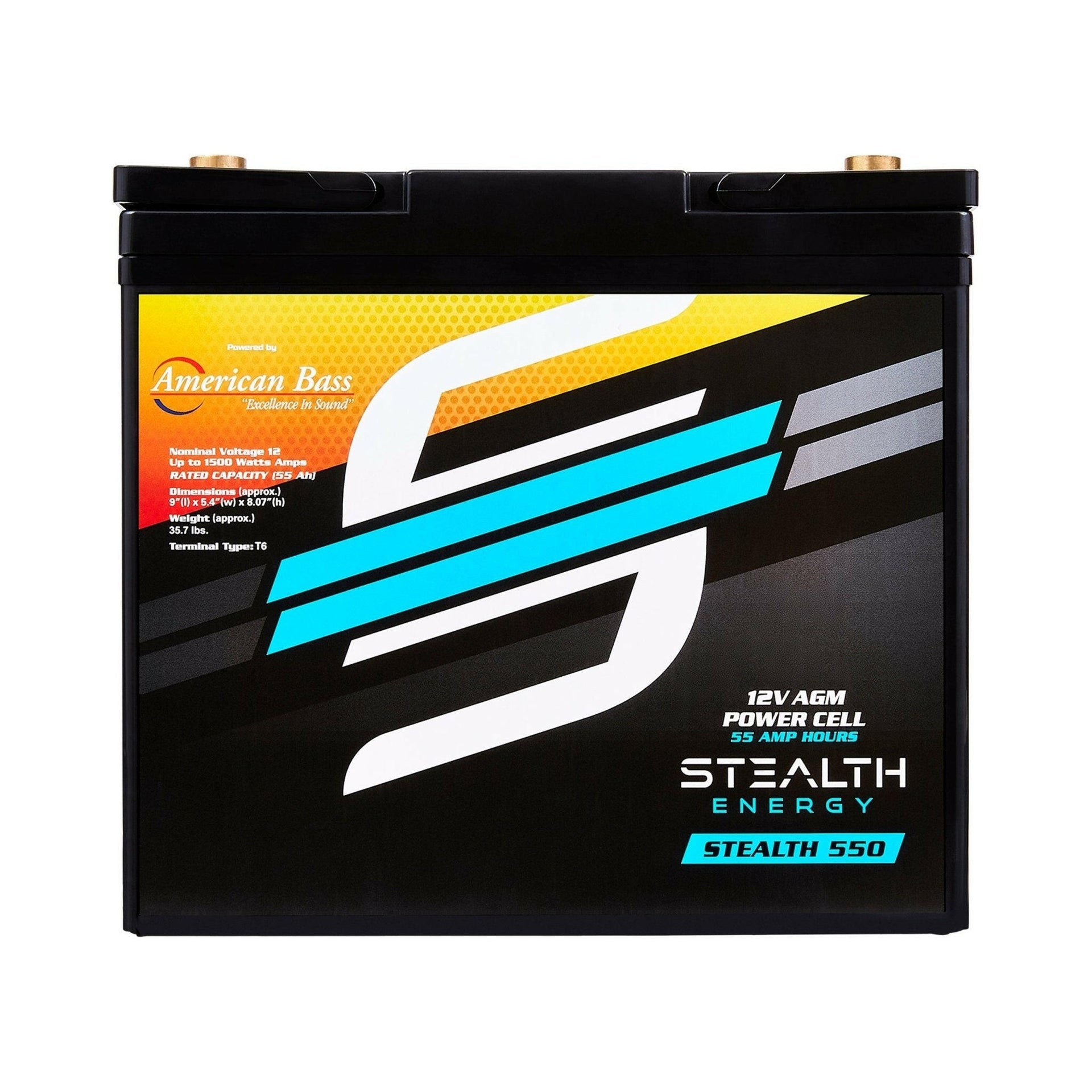

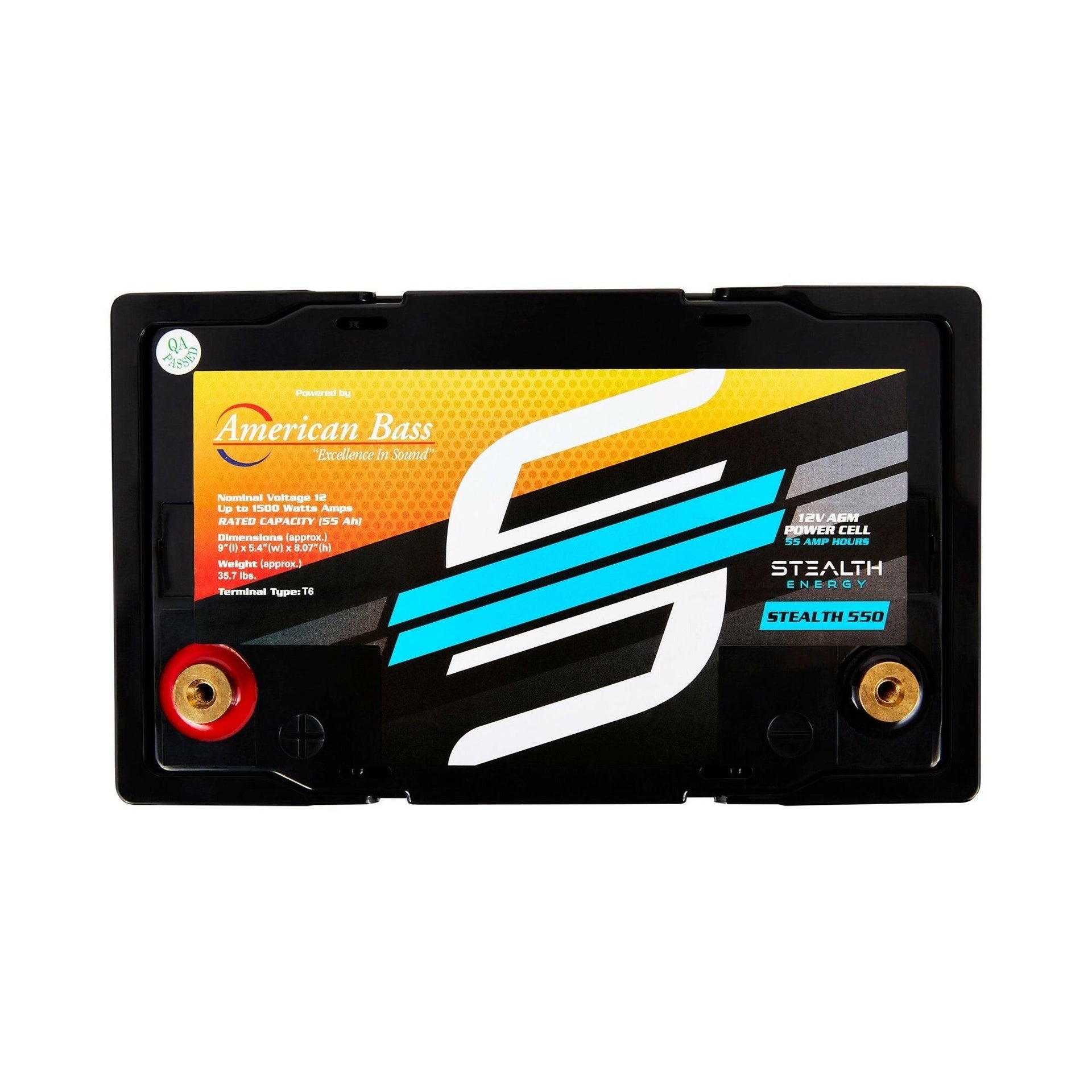

12V AGM Battery,55 AH
| NOMINAL VOLTAGE |
12V |
| NOMINAL CAPACITY(20HR) |
55.0AH |
| APPROX WEIGHT |
Approx 16.2 kg (35.17lbs) |
| TERMINAL |
T6 |
| CONTAINER MATERIAL |
ABS |
| MAX. DISCHARGE CURRENT |
660A (5s) |
| INTERNAL RESISTANCE APPROX |
Approx 7.5mΩ |
| NOMINAL OPERATING TEMP. RANGE |
25+3 C (77+5 F ) |
| DIMENSION |
-
Length: 229+3mm (9.02 inches)
-
Width: 138+2mm (5.43 inches)
-
Container Height: 205+3mm (8.07 inches)
-
Total Height (with Terminal): 211+3mm (8.31 inches)
|
| RATED CAPACITY |
-
57.2 AH/2.86A: (20hr ,1.80V/cell,25 C/77 F)
-
55.0 AH/5.50A: (10hr ,1.80V/cell,25 C/77 F)
-
47.3 AH/9.46A: (5hr ,1.75V/cell,25 C/77 F)
-
42.9 AH/14.3A: (3hr ,1.75V/cell,25 C/77 F)
-
33.6 AH/33.6A: (1hr ,1.60V/cell,25 C/77 F)
|
| CAPACITY AFFECTED BY TEMPERATURE |
- 40 C (104 F): 103%
- 25 C (77 F): 100%
- 0 C (32 F): 86%
|
| OPERATING TEMP.RANGE |
-
Discharge: -15~50 C (5~122 F)
-
Charge: 0~40 C (32~104 F)
-
Storage: -15~40 C (5~104 F)
|
|
CYCLE USE
|
- Initial Charging Current less than 15.5A.Voltage
- 14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C
|
|
STANDBY USE
|
- No limit on Initial Charging Current Voltage
- 13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C
|
|
SELF DISCHARGE
|
- Batteries may be stored for up to 6 months
- at 25 C(77 F) and then a freshening charge is required.
- For higher temperatures the time interval will be shorter.
|
